Scuff Plate: Service and Repair

REPLACEMENT

FRONT DOOR AND REAR DOOR SCUFF TRIM REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
- Take care not to bend or scratch the trim and panels.

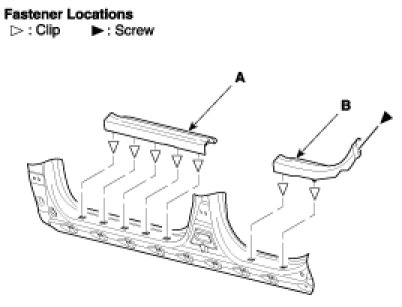

1. Remove the front door scuff trim (A).
2. Remove the rear door scuff trim (B).




3. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.
