Passenger Assist Handle: Service and Repair

REPLACEMENT

ASSIST HANDLE REPLACEMENT

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
- Put on gloves to protect your hands.

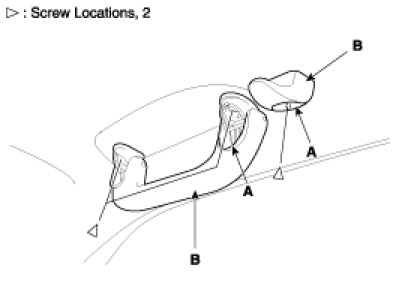

1. Remove the covers (A), and remove the screws, then remove the assist handle (B).




2. Installation is the reverse of removal.
