Cover Replacement

Replacement

Cover Replacement

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged.
- Put on gloves to protect your hands.

1. Remove the crash pad side cover (A).

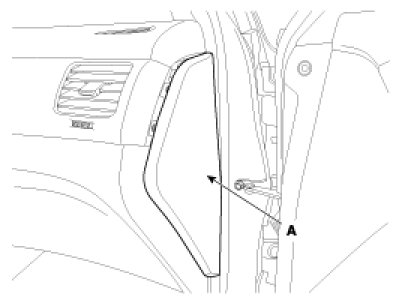

[Driver's]

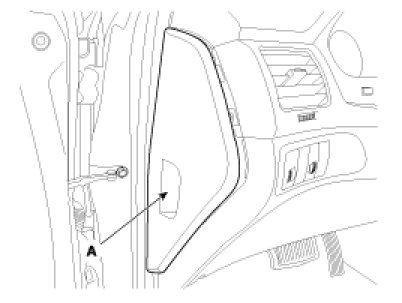

[Passenger's]

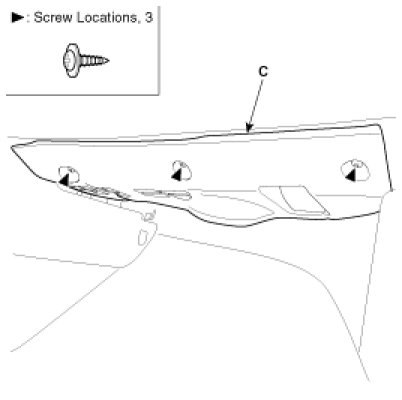

2. Remove the under cover (C).




3. Installation is the reverse of removal.
