Center Facia Panel Replacement

Replacement

Center Facia Panel Replacement

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged.
- Put on gloves to protect your hands.

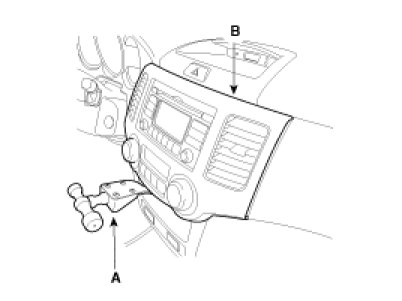

1. Using a center facia (A) remover, and remove the center facia panel (B).

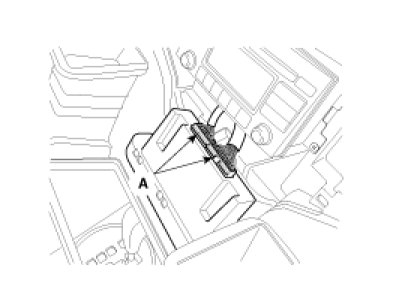

2. Disconnect the connector (A).




3. Installation is the reverse of removal.

NOTE:
- Make sure the connector are plugged in properly.
