Center Facia Lower Panel Replacement
Replacement
Center Facia Lower Panel Replacement
1. Remove the center facia panel.

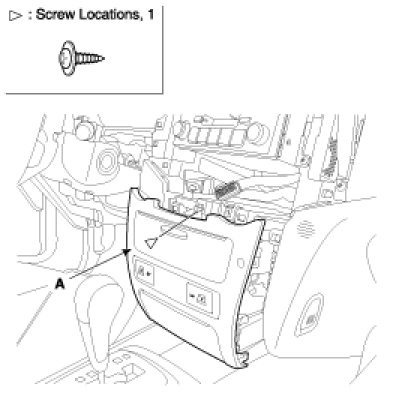

2. After loosening the screw, then remove the lower panel (A).
3. Installation is the reverse of removal.
Replacement
Center Facia Lower Panel Replacement
1. Remove the center facia panel.
2. After loosening the screw, then remove the lower panel (A).
3. Installation is the reverse of removal.
