Roof Trim

REPLACEMENT

OVERHEAD CONSOLE LAMP REPLACEMENT

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
- Put on gloves to protect your hands.

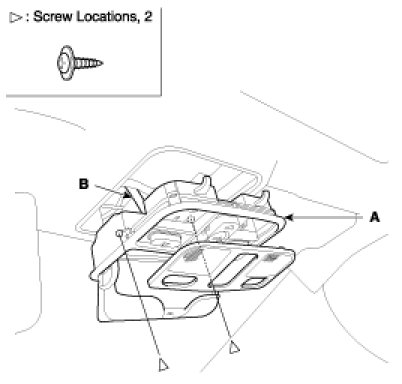

1. Remove the overhead console.
A. Remove the screw.
B. Pull out the roof console (A).
C. Disconnect the connector (B).




2. Installation is the reverse of removal.
