Overhead Console Lamp

Removal

1. Disconnect the negative (-) battery terminal.

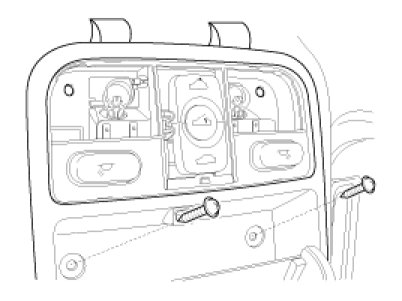

2. Open the sunglass case cover then remove the 2 screws holding the overhead console.




3. Disconnect the connector (8P) of sunroof switch then remove the overhead console lamp assembly from the headliner.

Installation

1. Install the overhead console lamp after connecting the sunroof switch connector and lamp connector.
2. Install the lens after tightening 2 screws.
