Trunk / Liftgate Shock / Support: Service and Repair

Replacement

Trunk Lid Lift Replacement

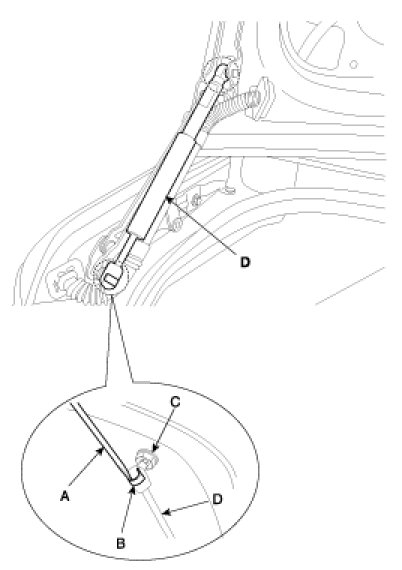

1. Using a screwdriver (A), lift up slightly the socket clips (B) of both ends on the lifter (D), and then remove the lifter from the bracket (C).
2. Loosen the mounting nut, then remove the trunk lid lift (D).




3. Push the socket of the lifter into the bracket for installation.
