Rear Door Latch: Service and Repair

REPLACEMENT

LATCH ASSEMBLY REPLACEMENT
1. Remove the following parts.
A. Front door trim.
B. Glass.
C. Inside handle.
D. Outside handle.
2. Remove the module assembly.

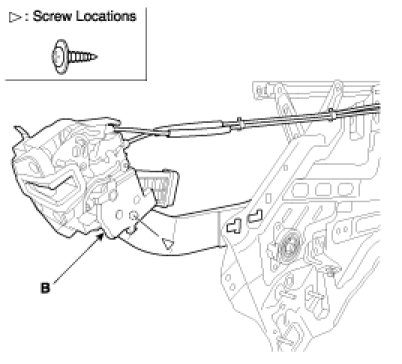

3. Remove the latch assembly (B).




4. Installation is the reverse the removal.

NOTE:
- Make sure the door locks and opens properly.
