Front Door Weatherstrip: Service and Repair

REPLACEMENT

DOOR WEATHERSTRIP REPLACEMENT
1. Loosen the checker mounting bolts.

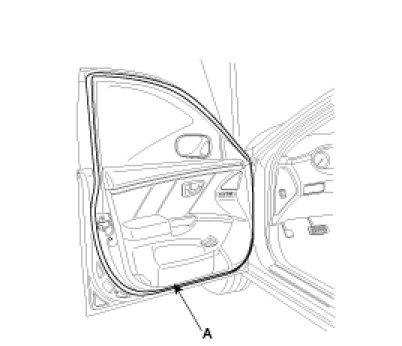

2. Detach the clips, then remove the weatherstrip(A).




3. Installation is the reverse of removal.
