Monitor DTC Status

P2A00 HO2S Not Ready (Bank 1 / Sensor 1)

Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. IG "ON".
3. Select "DTC" but ton, and then Press "DTC Status" to check DTC's information from the DTCs menu.
4. Read "DTC Status" parameter.

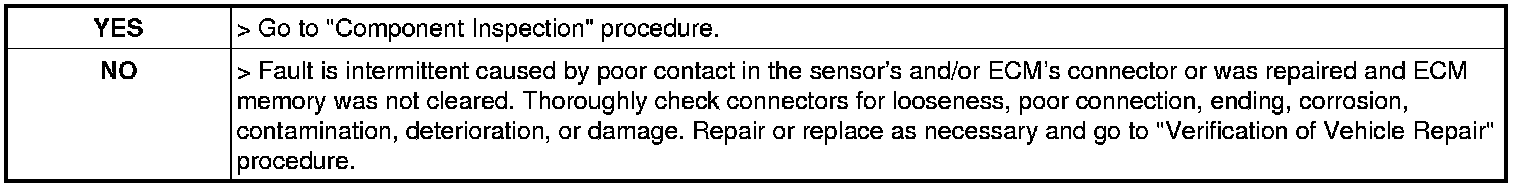

5. Is parameter displayed "Present fault"?
