Component Inspection

P1115 Engine Coolant Temperature Sensor Circuit Intermittent high

Inspection/Repair - Component Inspection

Component Inspection

Check ECTS resistance
1. IG "OFF" and disconnect ECTS connector.
2. Measure resistance between signal and ground terminals of ECTS connector after checking out the temperature of ECTS with scantool (Component Side)

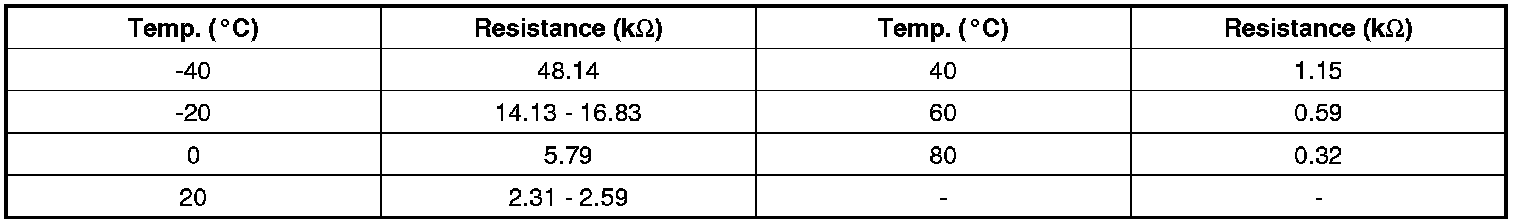

Specification :

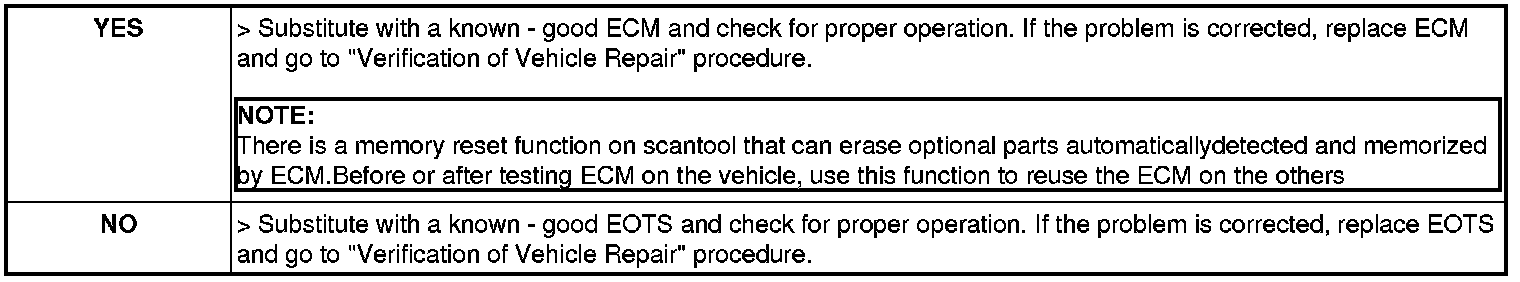

3. Is the measured resistance within specification?
