Component Inspection





P0885 TCM Power Relay Control Circuit/Open

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF".
2. Remove "A/T CONTROL RELAY"
3. Measure the resistance between each terminal of the sensor

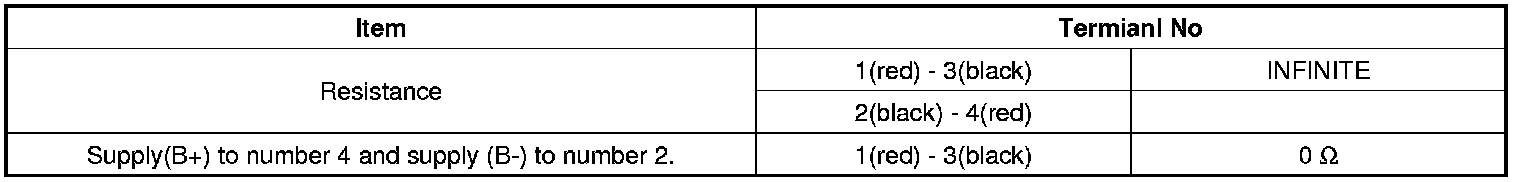

Specification:

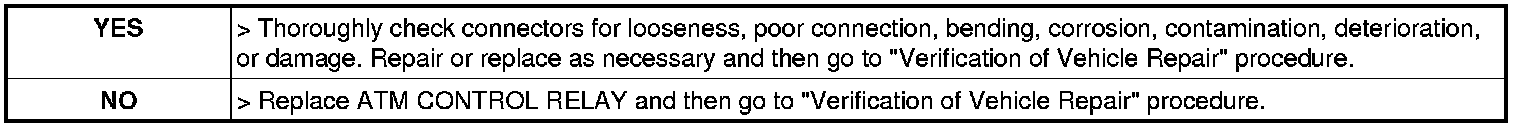

4. Is resistance within specifications?
