Monitor DTC Status

P0735 Gear 5 Incorrect Ratio

Scantool Diagnostics

Monitor Scantool Data

** It is difficult to "STALL TEST" in 5th gear, so that Go to "W/Harness Inspection" procedure

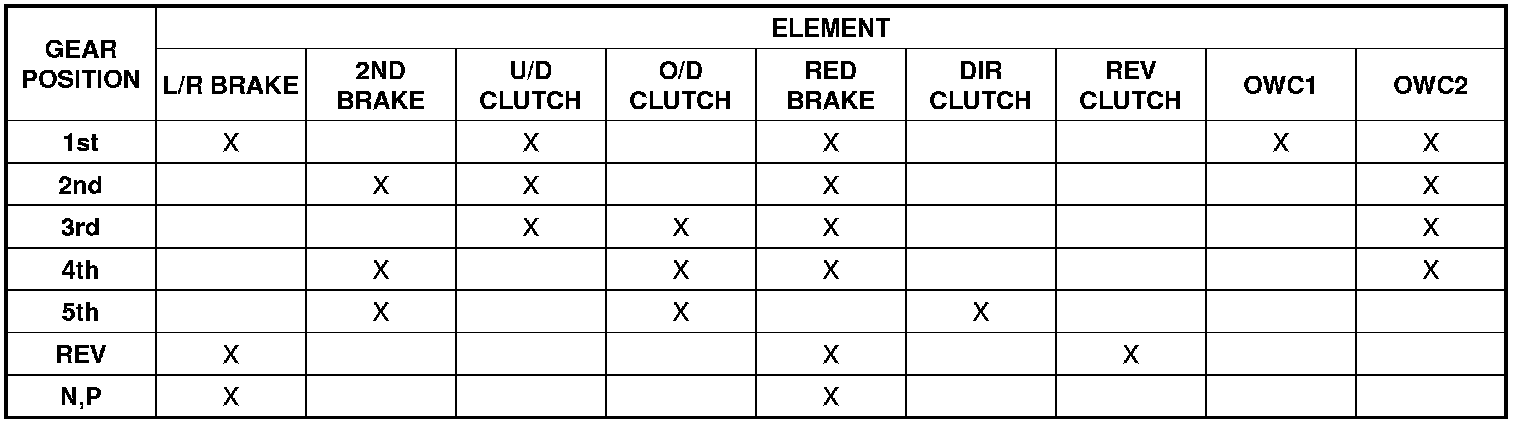

OPERATING ELEMENT OF EACH SHIFTING RANGE





** Low & Reverse Brake is released When the vehicle speed over the 5MPH (7 km/h)
