Monitor DTC Status

P0713 Transmission Fluid Temperature Sensor \'A\' Circuit High Input

Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "TRANSAXLE FLUID TEMPERATURE SENSOR" parameter on the scantool.

Specification :Increasing Gradually




Fig 1) Normal

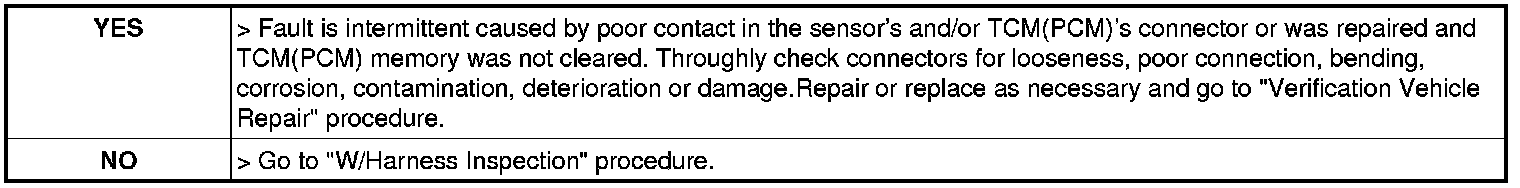

4. Does "TRANSAXLE OIL TEMPERATURE SENSOR " follow the referance data?
