Component Inspection





P0660 Intake Manifold Tuning Valve Control Circuit/Open (Bank 1)

Inspection/Repair - Component Inspection

Component Inspection

Check VIV
1. IG "OFF" and disconnect VIV connector.
2. Measure resistance between power and control terminals of VIV connector. (Component side)

Specification :30 - 35 Ohms (22°C/71.6°F)

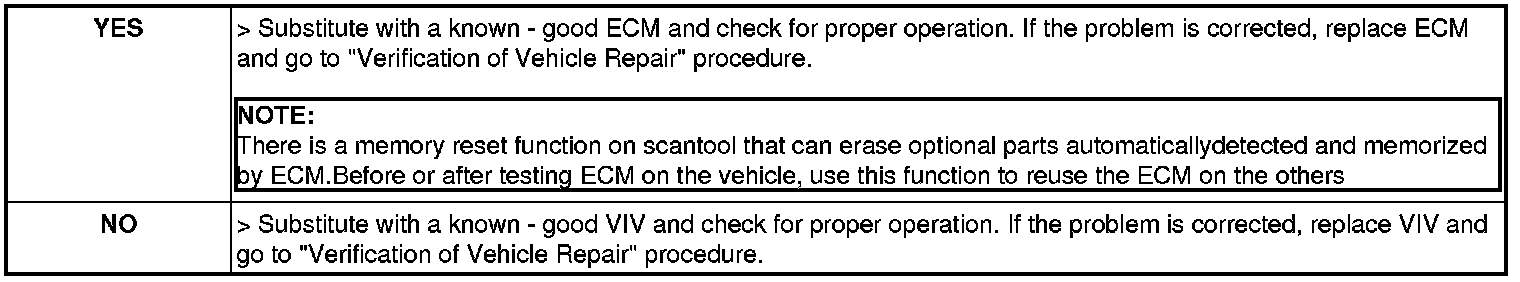

3. Is the measured resistance within specification?
