Component Inspection

P0562 System Voltage Low

Inspection/Repair - Component Inspection

Component Inspection

Check Main relay
1. IG "OFF" and disconnect main relay.
2. Measure the resistance between battery power supply and control terminals of main relay. (Measurement "A")
3. Measure the resistance between battery power supply and power supply to ECM terminals of main relay. (Measurement "B")
Specification :

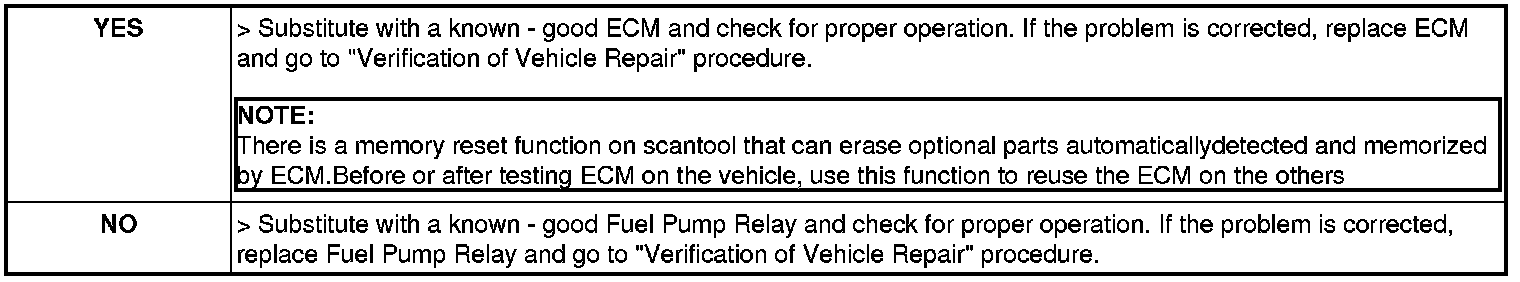

4. Is the measured resistance within specification?
