Component Inspection





P0453 Evaporative Emission System-Pressure Sensor High Input

Inspection/Repair - Component Inspection

Component Inspection

Check FTPS
1. IG "OFF" and connect scantool to DLC (Data Link Connector).
2. Monitor "FTPS" parameter on service data.

Specification :Approx. 15.5 - 18.5 Ohms (20°C (68°F))

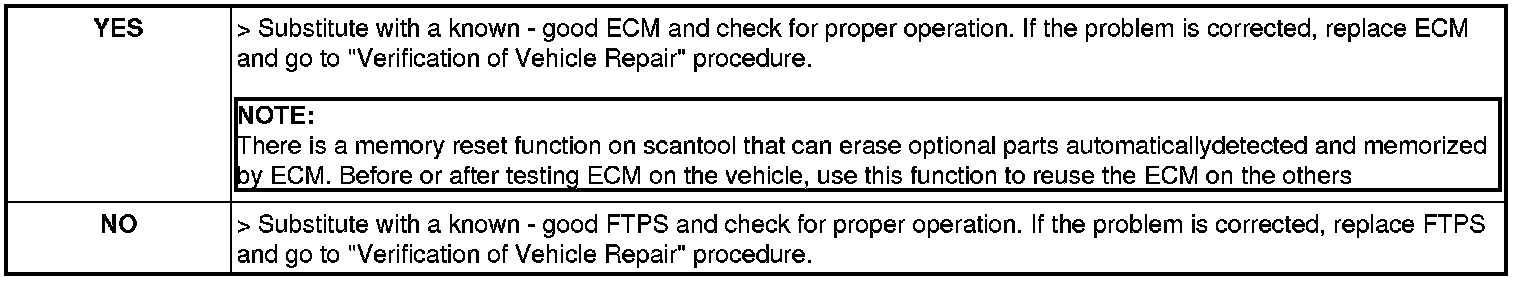

3. Is the "FTPS" parameter on the service data O.K?
