Component Inspection

P0447 Evaporative Emission System-Vent Control Circuit Open

Inspection/Repair - Component Inspection

Component Inspection

Check CCV
1. IG "OFF" and disconnect CCV connector.
2. Measure resistance between power and control terminals of CCV connector. (Component side)

Specification :Approx. 23 - 25 Ohms (20°C (68°F))

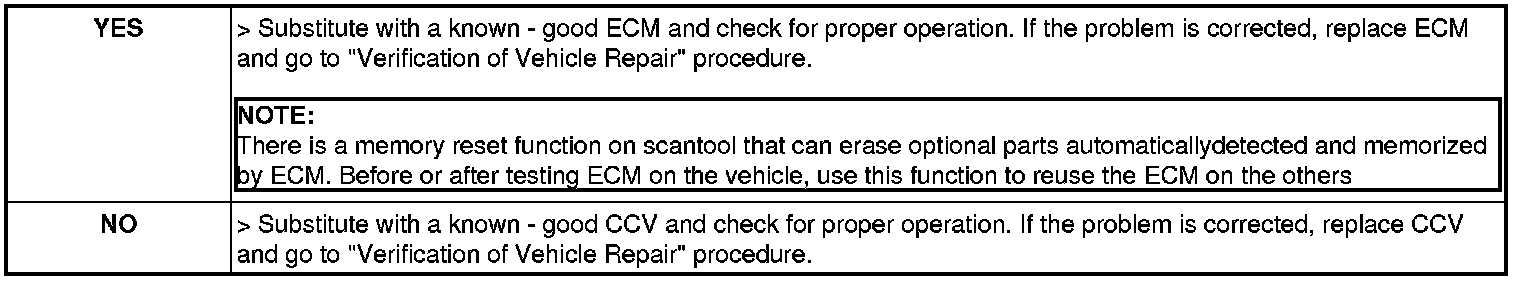

3. Is the measured signal waveform normal?
