Component Inspection

P0346 Camshaft Position Sensor A Circuit Range/Performance (Bank 2)

Inspection/Repair - Component Inspection

Component Inspection

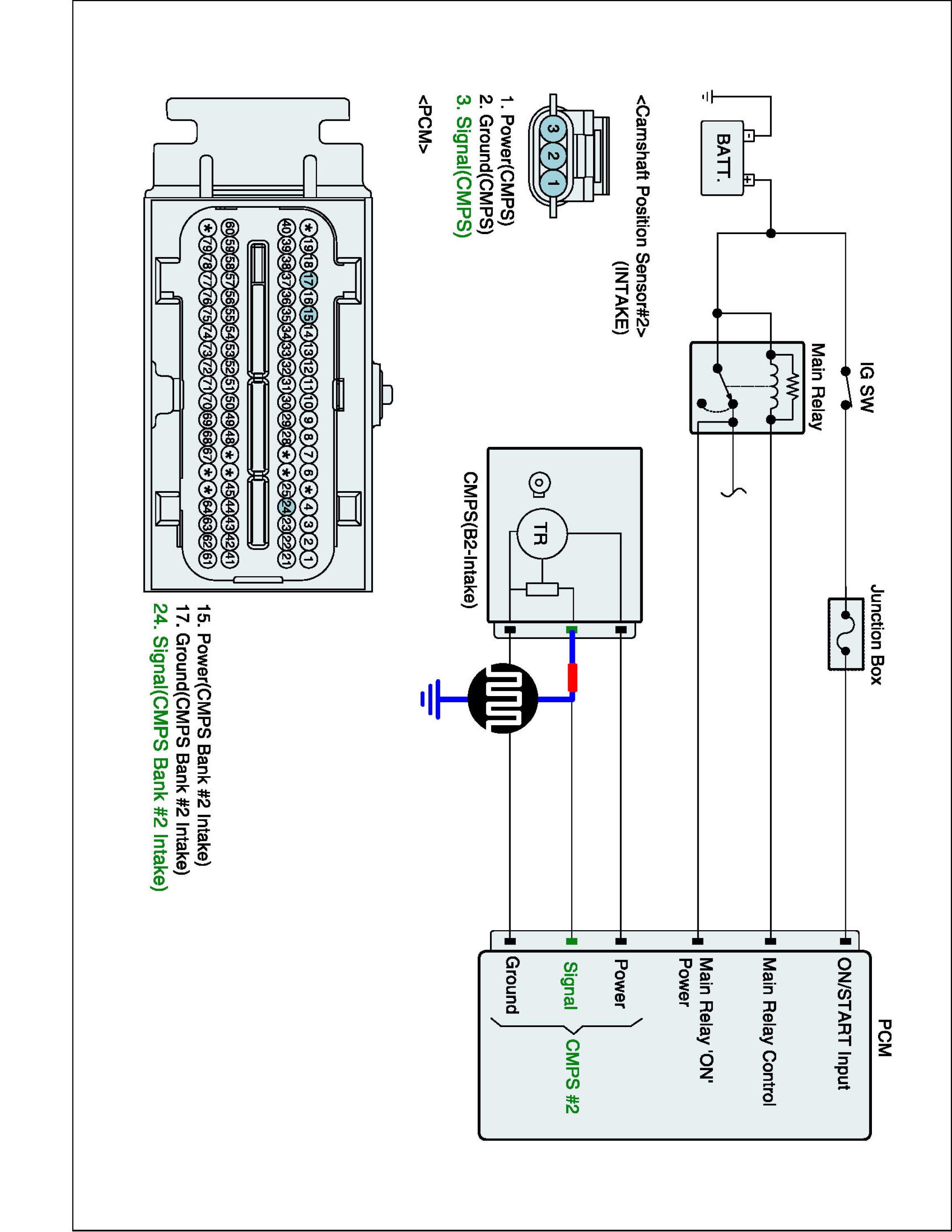

Check CMPS
1. IG "OFF" and connect scantool.
2. ENG "ON" and Measure signal waveform at signal terminal of CMPS.

Reference signal waveform :




Fig.1) Normal waveform of CMPS1 & 2 at idle.

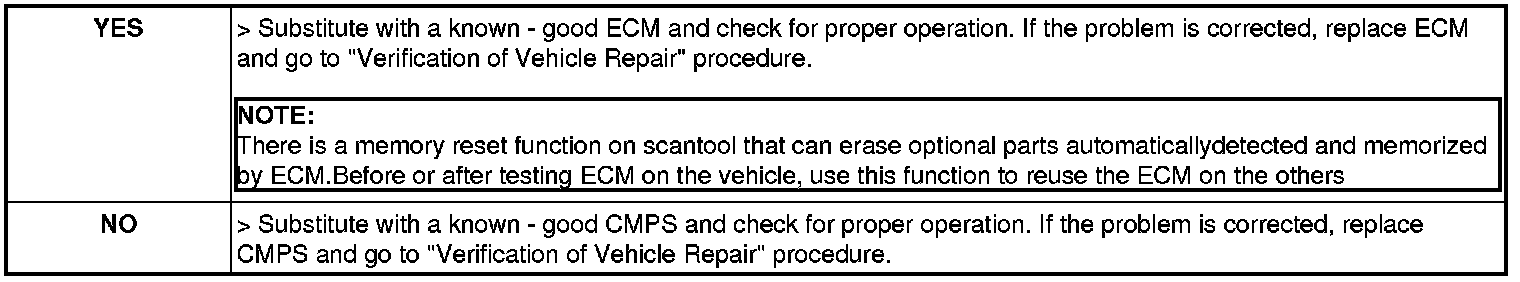

3. Is the measured signal waveform normal?
