Component Inspection

P0217 Engine Coolant Over Temperature Condition

Inspection/Repair - Component Inspection

Component Inspection

Check EOTS resistance
1. IG "OFF" and disconnect ECTS connector.
2. Measure resistance between signal and ground terminals of EOTS connector after checking out the temperature of EOTS with scantool (Component Side)

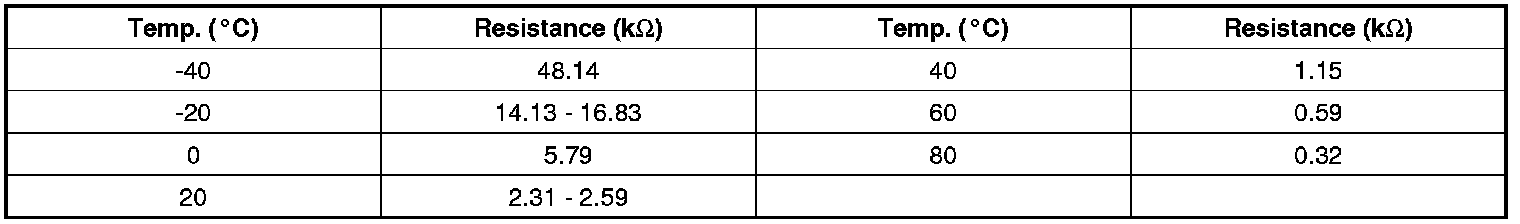

Specification :

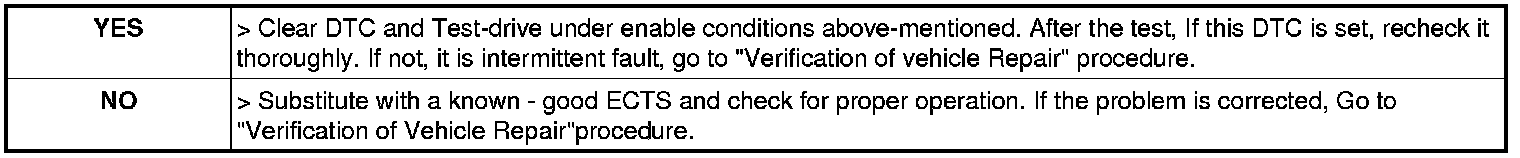

3. Is the measured resistance within specification?
