W/Harness Inspection

P0197 Engine Oil Temperature Sensor Low Input

Inspection/Repair - W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Signal Circuit Inspection

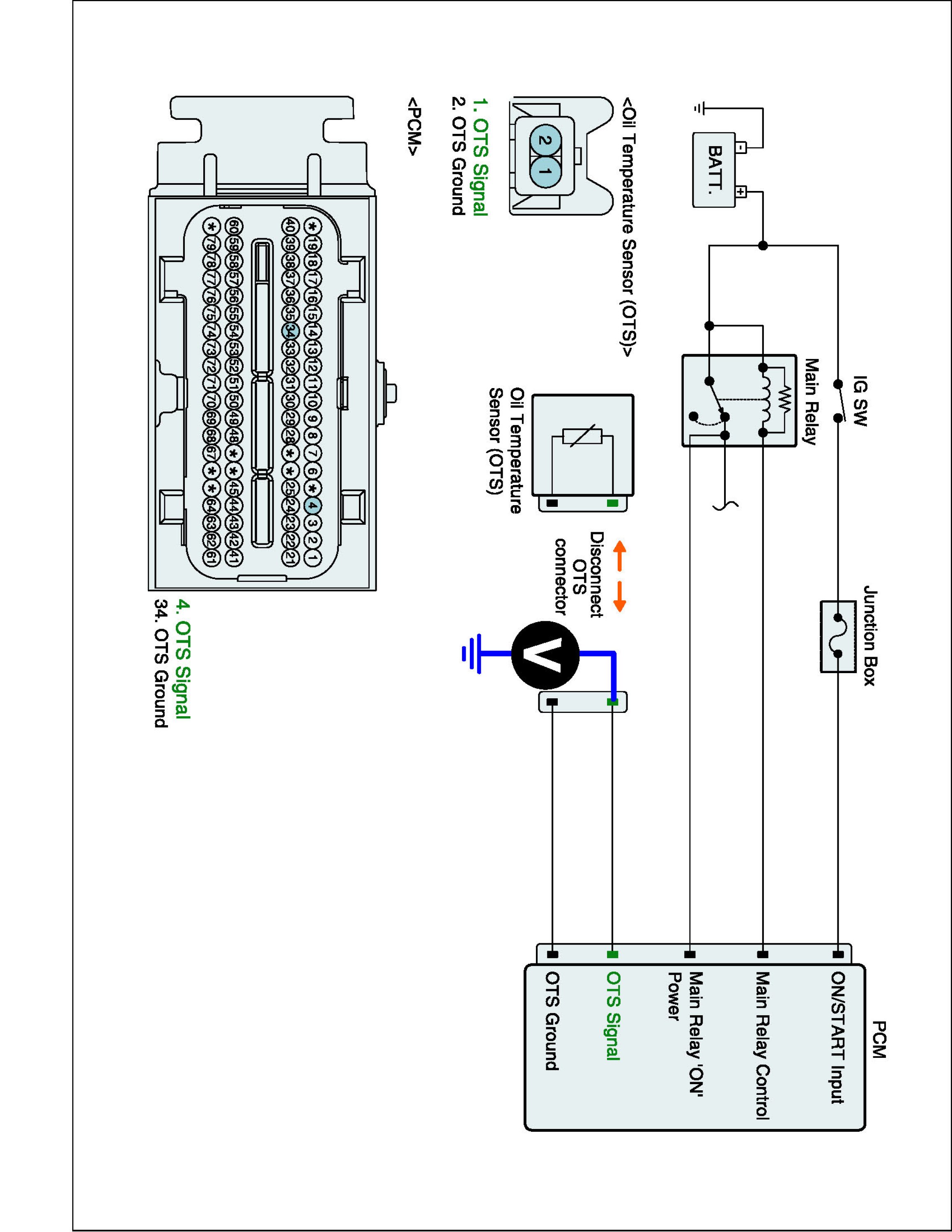

Check voltage
1. IG "OFF" and disconnect OTS connector.
2. IG "ON"
3. Measure voltage between signal terminal of OTS harness connector and chassis ground.

Specification :Approx. 5 V





4. Is the measured voltage within specification?
