Component Inspection

P0125 Insufficient Coolant Temperature for Closed Loop Fuel Control

Inspection/Repair - Component Inspection

Component Inspection

Check ECTS resistance
1. IG "OFF" and disconnect ECTS connector.
2. Measure resistance between signal and ground terminals of ECTS connector after checking out the temperature of ECTS with scantool (Component Side)

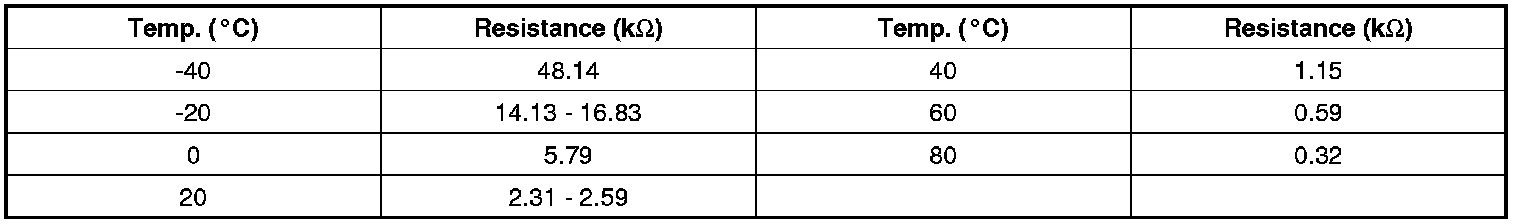

Specification :

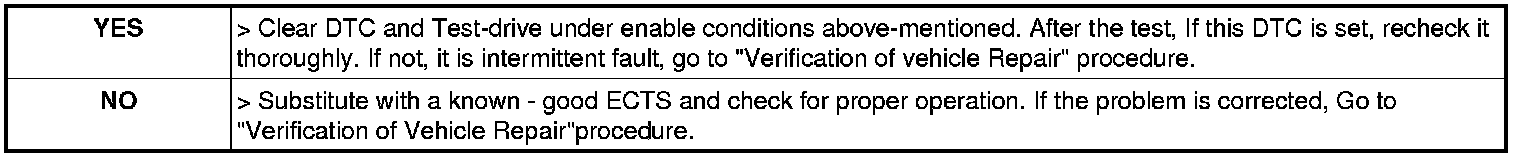

3. Is the measured resistance within specification?
