Component Inspection

P0116 Engine Coolant Temperature Circuit Range / Performance

Inspection/Repair - Component Inspection

Component Inspection

Check ECTS resistance
1. IG "OFF" and disconnect ECTS connector.
2. Measure resistance between signal and ground terminals of ECTS connector after checking out the temperature of ECTS with scantool (Component Side)

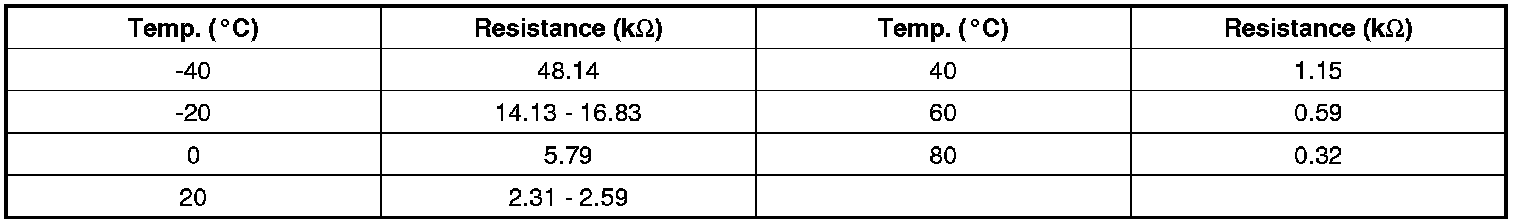

Specification :

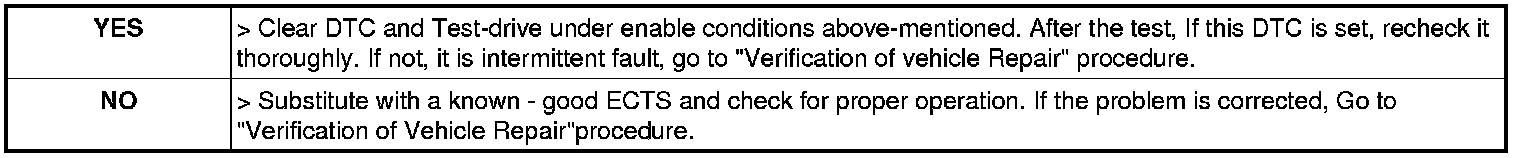

3. Is the measured resistance within specification?
