Component Inspection

P0111 Intake Air Temperature Sensor 1 Circuit Range / Performance

Inspection/Repair - Component Inspection

Component Inspection

Check IATS resistance
1. IG "OFF" and disconnect IATS connector.
2. Measure resistance between signal and ground terminals of IATS connector after checking out the temperature of IATS with scantool (Component Side)

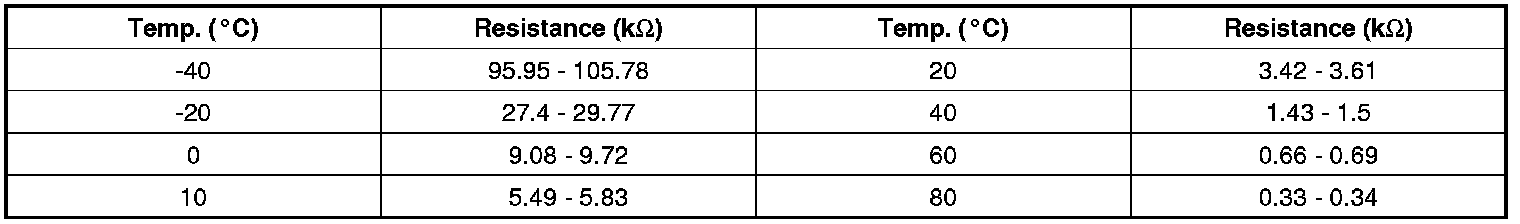

Specification :

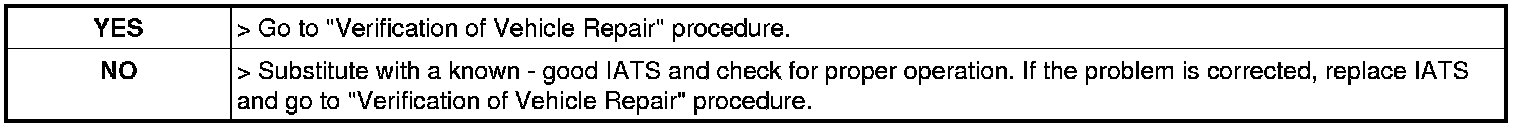

3. Is the measured resistance within specification?
