Component Inspection

C1259 Steering Angle Sensor - Electrical Malfunction

Inspection/Repair - Component Inspection

Component Inspection

Open or Short Check
1. Ignition "ON" & Engine "OFF".
2. Measure voltage between signal terminal of the steering angle sensor harness connector and chassis ground.

Specification :HIGH : 2.9±0.1 V ~ 4.4±0.1 V, LOW : 1.2±0.1 V ~ 2.1±0.1 V

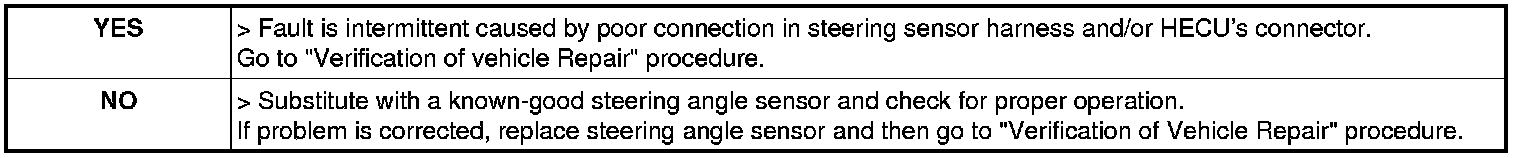

3. Is the measured value within specifications?
