Monitor DTC Status

B2507 Passenger airbag Telltale lamp Circuit open or short to ground

Scantool Diagnostics - Monitor Scantool Data

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
3. Monitor diagnostic trouble code and present of trouble code.
4. Using a scan tool, clear the DTC.

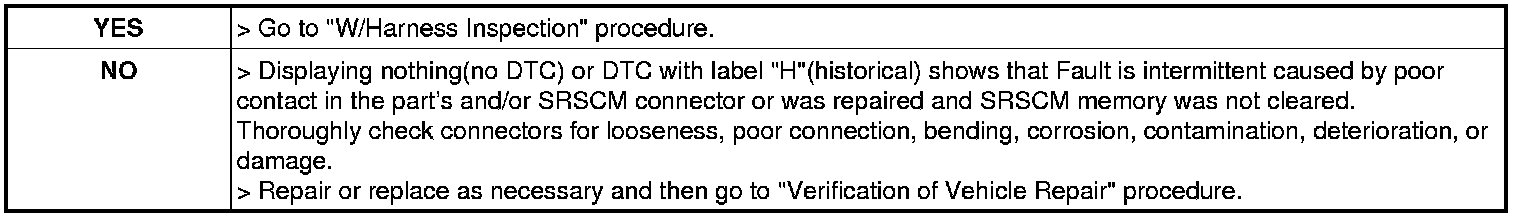

5. Is DTC present problem?
