B1203 Heater Water Temperature Sensor Short (Low)

Inspection/Repair - Component Inspection

Component Inspection

Check Water temp.sensor
1. Ignition "OFF"
2. Disconnect Water temp.sensor and Connect A/C control unit main harness connector.
3. Measure resistance between Signal (+) terminal of Water temp.sensor harness connector and Sensor ground harness connector. (Component side)

Specification :Refer the specifications in Fig.1)






Fig.1)

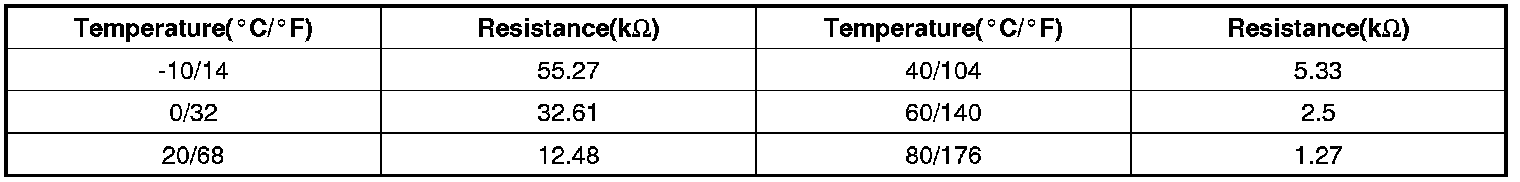

FIG.1) ** Specifications : Resistance value of water sensor as a function of temperature.
** The actual value may differ from it according to various engine condition.

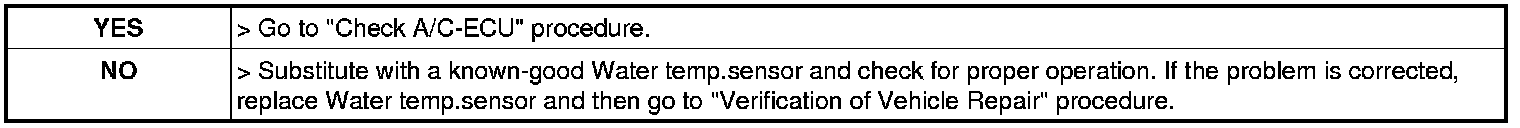

4. Is "resistance" display within specifications?





Check A/C-ECU
1. Ignition "OFF"
2. Disconnect Water temp.sensor and Connect A/C control unit main harness connector.
3. Ignition "ON"(ENGINE "OFF").
4. Measure voltage between Signal (+) terminal of Water temp.sensor harness connector and chassis ground. (Component side)

Specification :approx. 5 V

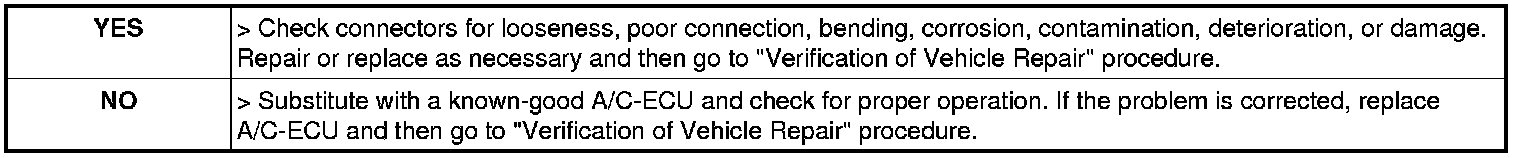

5. Is "voltage" display within specifications?
