Repair Procedures

Removal

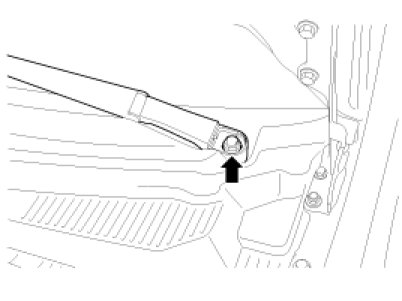

1. Remove the windshield wiper arm and blade after removing a nut (A).

Torque :23 - 27 Nm (2.3 - 2.7 kgf.m, 16.9 - 19.9 lbf.ft)

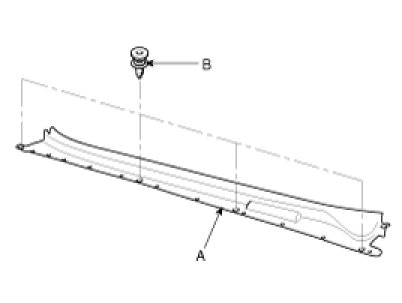

2. Remove the weather strip then remove the cowl top cover (A) after removing 4 clips (B).

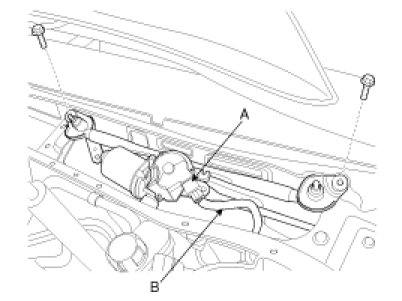

3. Remove the windshield wiper motor and linkage assembly after removing 2 bolts. Disconnect the wiper motor connector (A) and windshield deicer connector (B) from the wiper motor & linkage assembly.

Torque :7-11Nm (0.7-1.1, kgf.m, 5.0-7.9 lbf.ft)






Installation

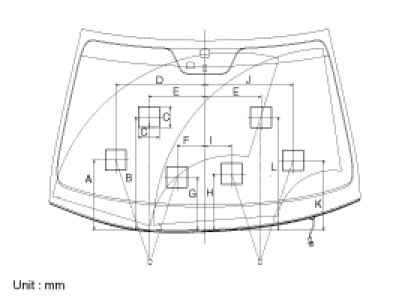

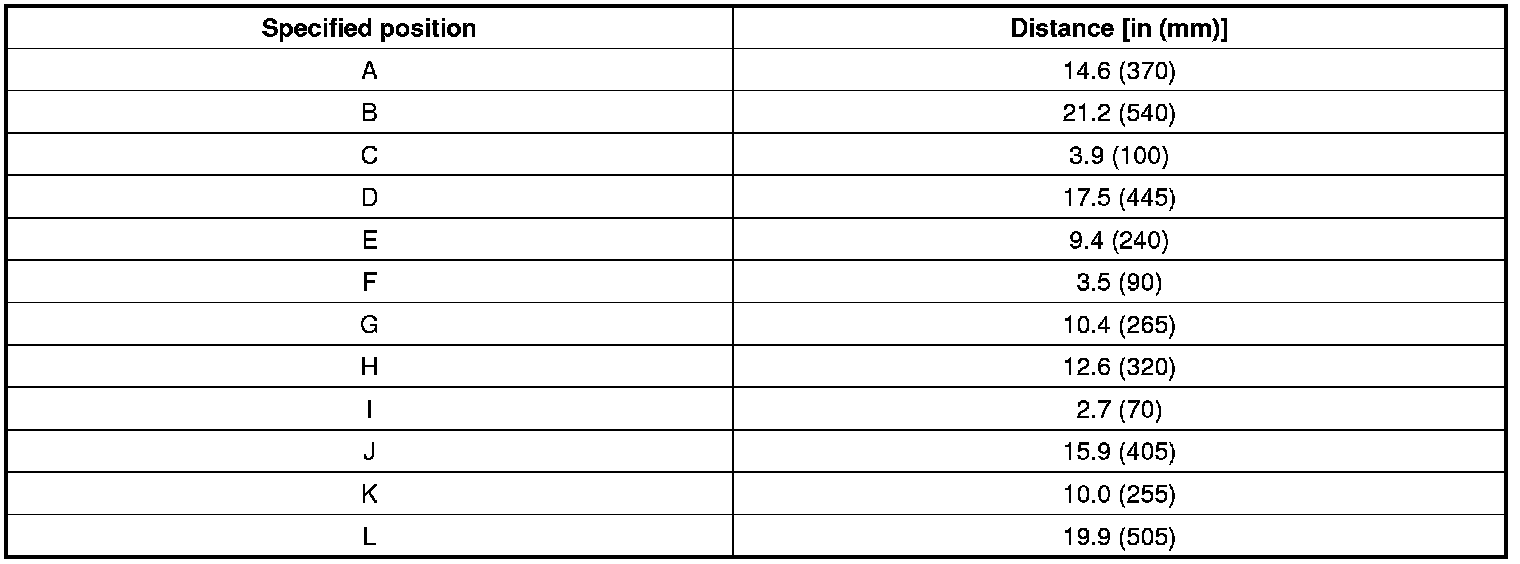

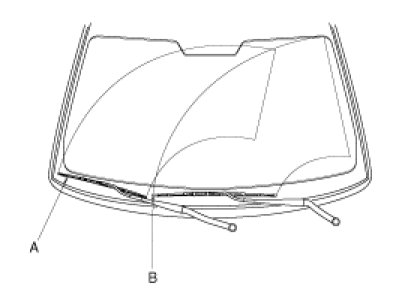

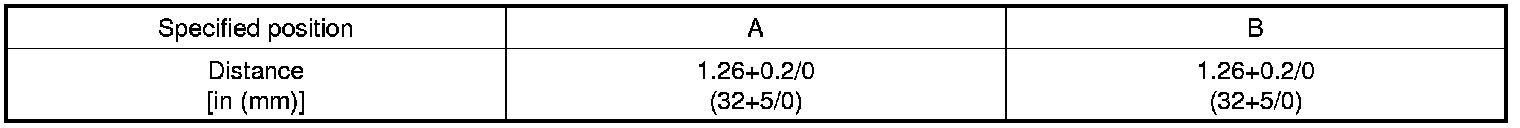

1. Install the wiper arm and blade to the specified position.









2. Set the washer nozzle on the specified spray position.
