Component Tests and General Diagnostics

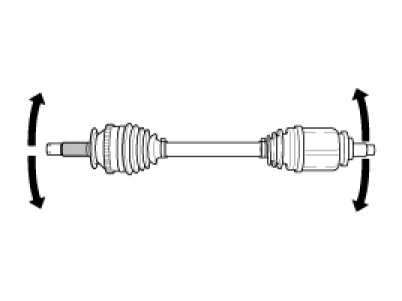

INSPECTION
1.
Check the driveshaft boots for damage and deterioration.
2.
Check the ball joints for wear and damage.
3.
Check the splines for wear and damage.
4.
Check the dynamic damper for cracks and wear.
