Repair Procedures

REPLACEMENT

1. Remove a transaxle assembly (refer to 'MT'-group).

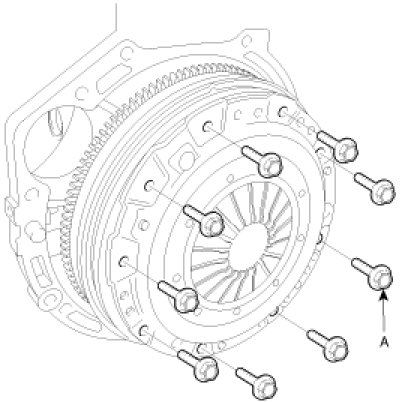

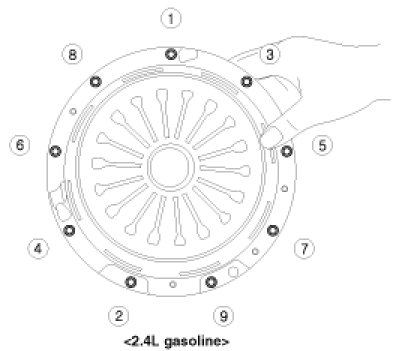

2. Remove the clutch cover bolts(A). Not to be bent or twisted, loosen the bolts in the specified order.

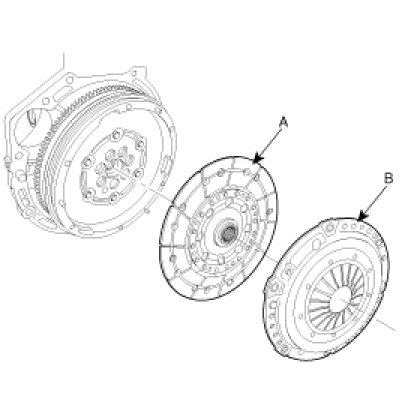

3. Remove the clutch cover(A) and disc(B).

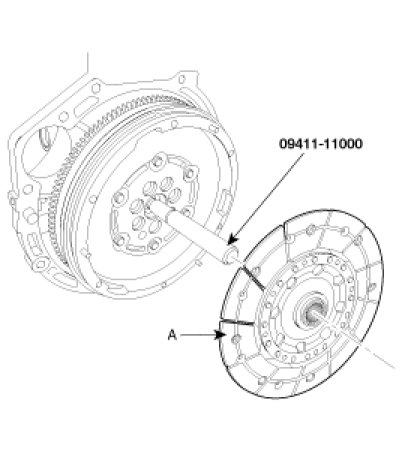

4. Using the SST(09411-11000), install a disc(A).





CAUTION:
- On vehicles with 2.4L gasoline engines, replace a clutch cover and disc as a set.

- Apply grease on a disc spline part and transmission input shaft spline part as required.
-> How to do: apply grease(CASMOLY L9508) 0.2gr. on the transmission input shaft spline part.

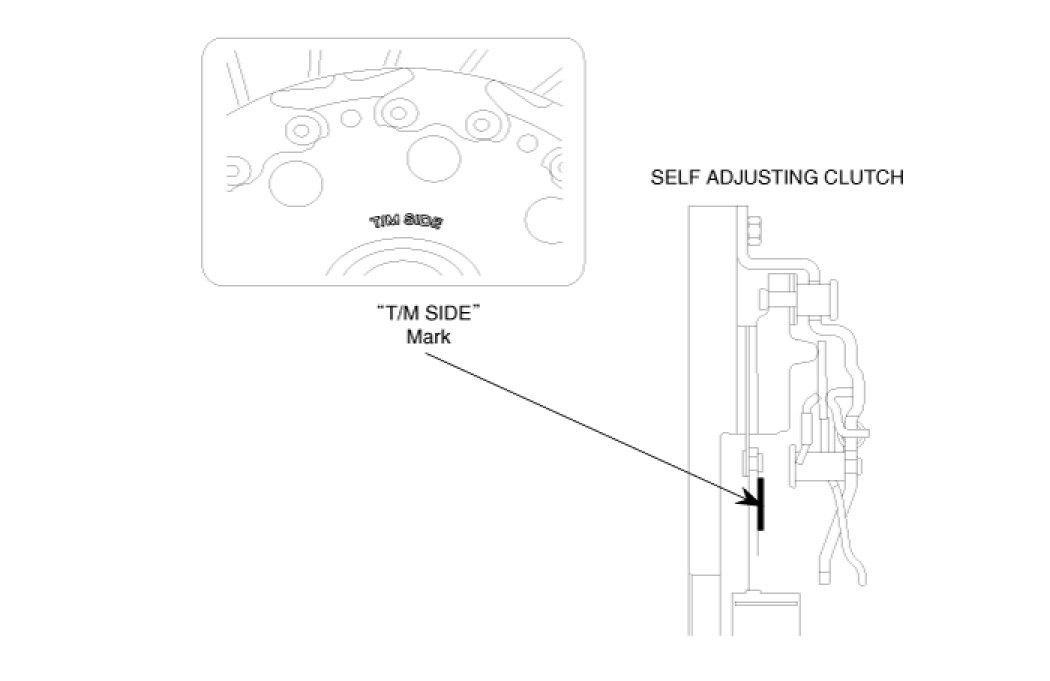

- The 'T/M SIDE' marked surface should face the transaxle.
-> If the surface face the opposite side, there can be an interference between a disc and a flywheel surface.

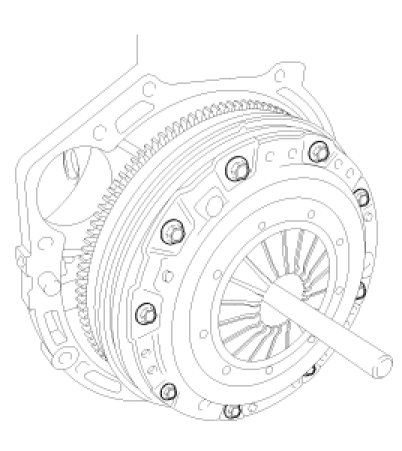

5. Tighten the clutch cover.

TORQUE:
11.8 - 14.7Nm (120 - 150kgf.cm, 8.7 - 10.8lb-ft) (2.4L-9EA)






CAUTION:
When installing the clutch cover, tighten the bolts.
