Repair Procedures

REMOVAL

1. Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

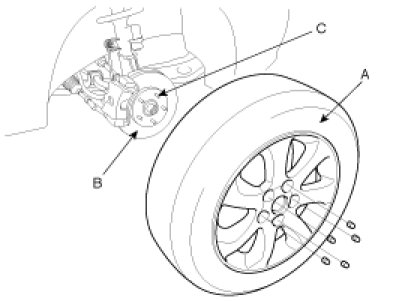

2. Remove the front wheel and tire (A) from front hub (B).





CAUTION:
Be careful not to damage the hub bolts(C) when removing the front wheel and tire(A).

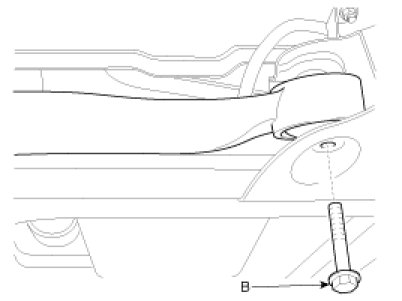

3. Remove the front lower arm (A) mounting bolt (B) from the knuckle.

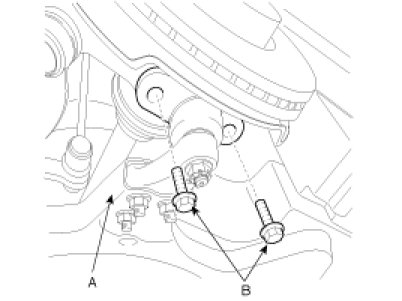

4. Remove the lower arm mounting bolts (A, B).










INSTALLATION

1. Install the lower arm mounting bolts (A, B).

Tightening torque Nm (kgf.m, lb-ft) :
Bolt (A) : 98.1 - 117.7 (10.0 - 12.0, 72.3 - 86.8)
Bolt (B) : 137.3 - 156.9 (14.0 - 16.0, 101.3 - 115.7)









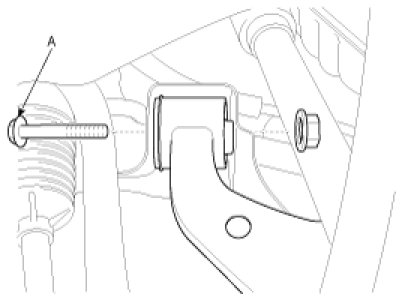

2. Install the front lower arm (A) mounting bolt (B) to the knuckle.

Tightening torque Nm (kgf.m, lb-ft) :
98.1 - 117.7 (10.0 - 12.0, 72.3 - 86.8)





3. Install the wheel and the tire (A) to the front hub (B).

Tightening torque Nm (kgf.m, lb-ft) :
88.3 - 107.9 (9 - 11, 65.1 - 79.5)






CAUTION:
Be careful not to damage the hub bolts (C) when installing the front wheel and tire (A).
