Home >> Kia >> 2010 >> Optima L4-2.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Axle Shaft Assembly

Axle Shaft Assembly

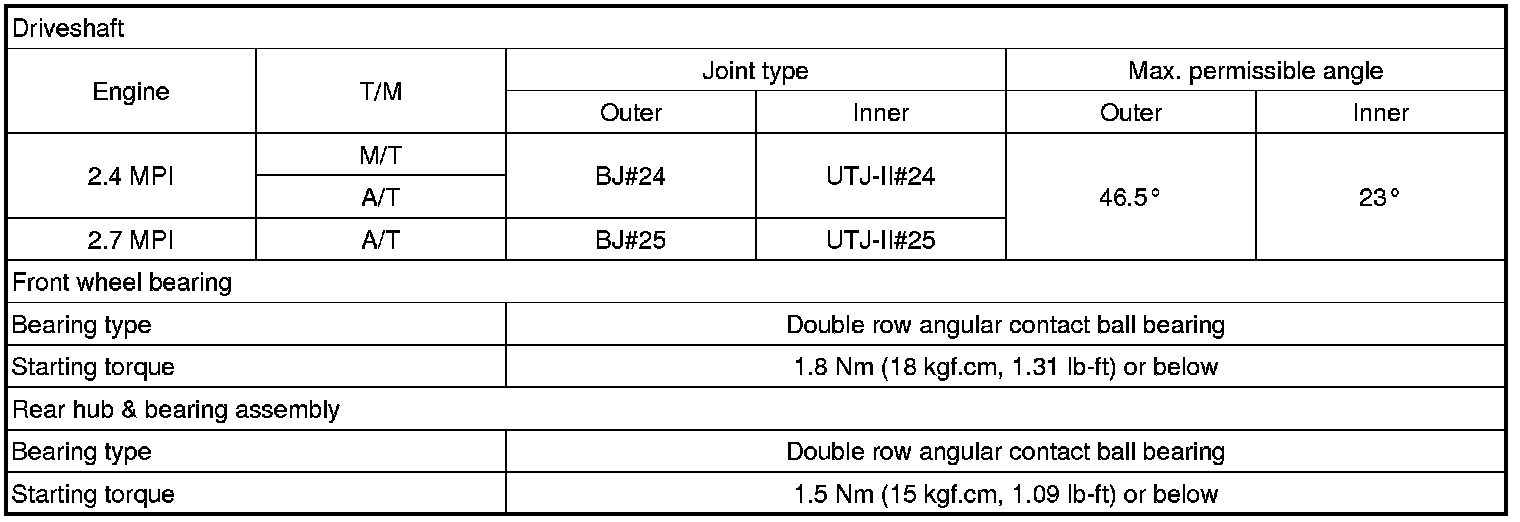

SPECIFICATIONS

NOTE:
Inner: On transaxle side
Outer: On tire side

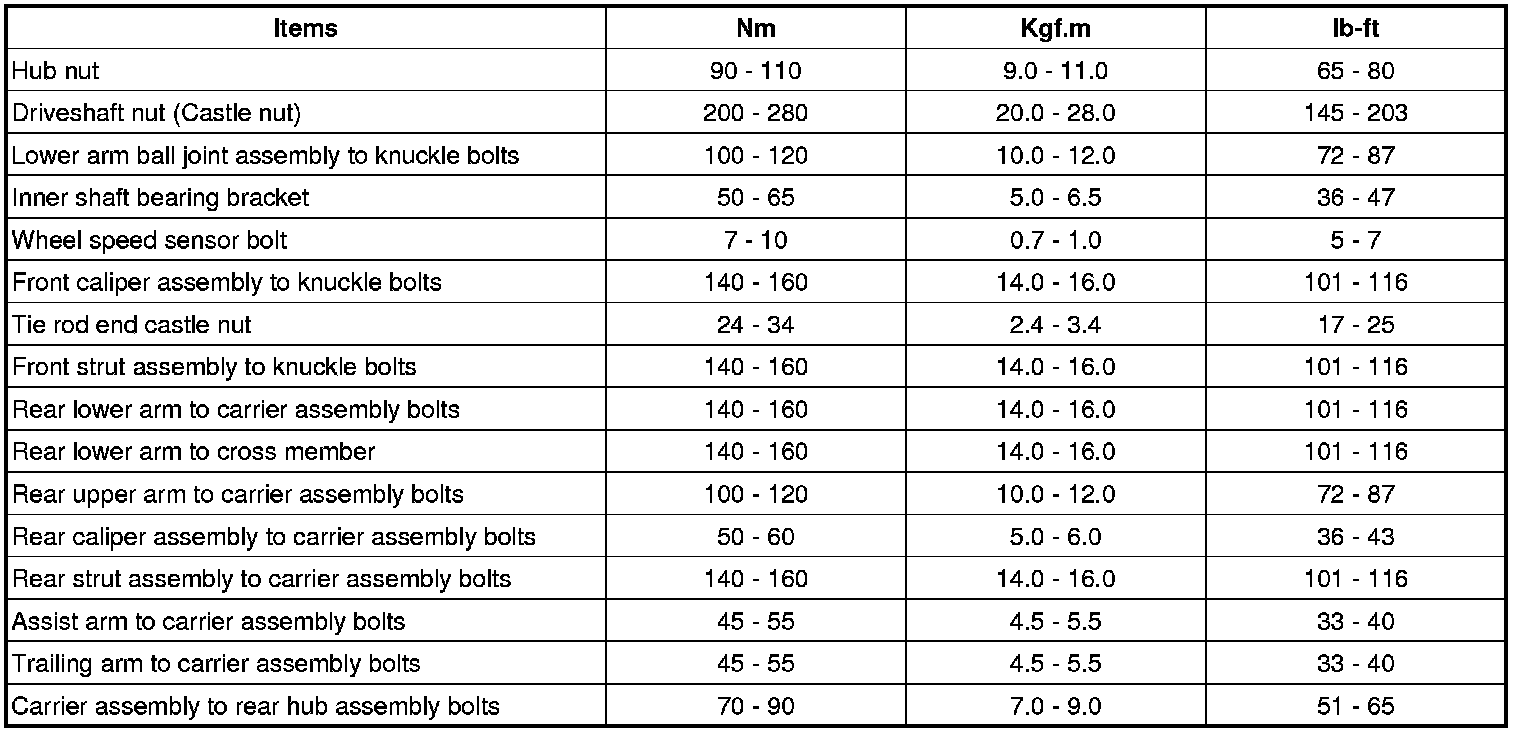

TIGHTENING TORQUE
