Seat Belt Height Adjuster: Service and Repair

REPLACEMENT

HEIGHT ADJUSTER REPLACEMENT
1. Remove the following items first.
A. Front assembly.
B. Front and rear door scuff trim.
C. Front seat belt upper and lower anchor.
D. Center pillar lower and upper trim.

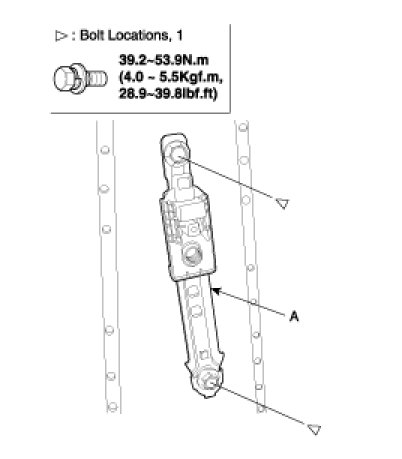

2. Loosen the mounting bolts, then remove the height adjuster (A).




3. Installation is the reverse of removal.
