Front Seat Belt Buckle

REPLACEMENT

FRONT SEAT BELT BUCKLE REPLACEMENT
1. Remove the following items first.
A. Front seat assembly.
2. Remove the wire harness of buckle from seat.

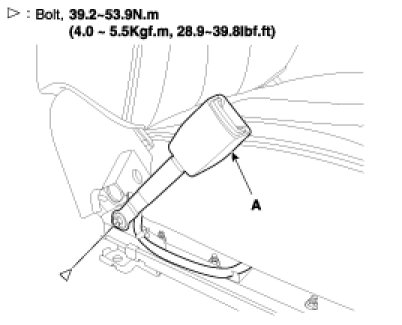

3. Remove the seat belt buckle (A).




4. Installation is the reverse of removal.
