Center Mounted Brake Lamp: Service and Repair

Removal

1. Disconnect the negative(-) battery terminal.
2. Open the trunk lid and then disconnect the connector of high mounted stop lamp.
3. Remove the package tray .

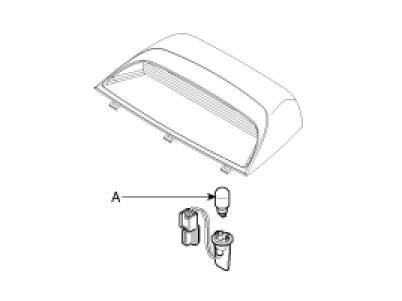

4. Replace the bulb(A) from the package tray.






Installation

1. Install the high mounted stop lamp to the rear package tray.
2. Install the rear package tray.
