Parking Brake Shoe: Adjustments

Parking Brake Shoe Clearance Adjustment

Disc Brake Type
1. Lift the vehicle, and make sure it is securely supported.
2. Remove the rear tire and wheel.
3. Remove the plug from the disc.

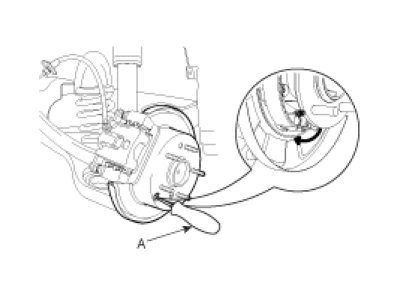

4. Turn the adjusting wheel in arrow direction as shown until the disc won't be rotated by tangential force of 29.4N(3kgf, 6.6Ib) using the (-)screw driver (A). Then turn back the adjusting wheel by 3 - 5 notches.




5. Install the rear tire and wheel after installing the plug.
