Trunk / Liftgate: Service and Repair

Replacement

Trunk Lid Assembly Replacement

NOTE:
- When removing the clips, use a clip remover.

1. Remove the trunk trim.
2. Disconnect the trunk lid connector.

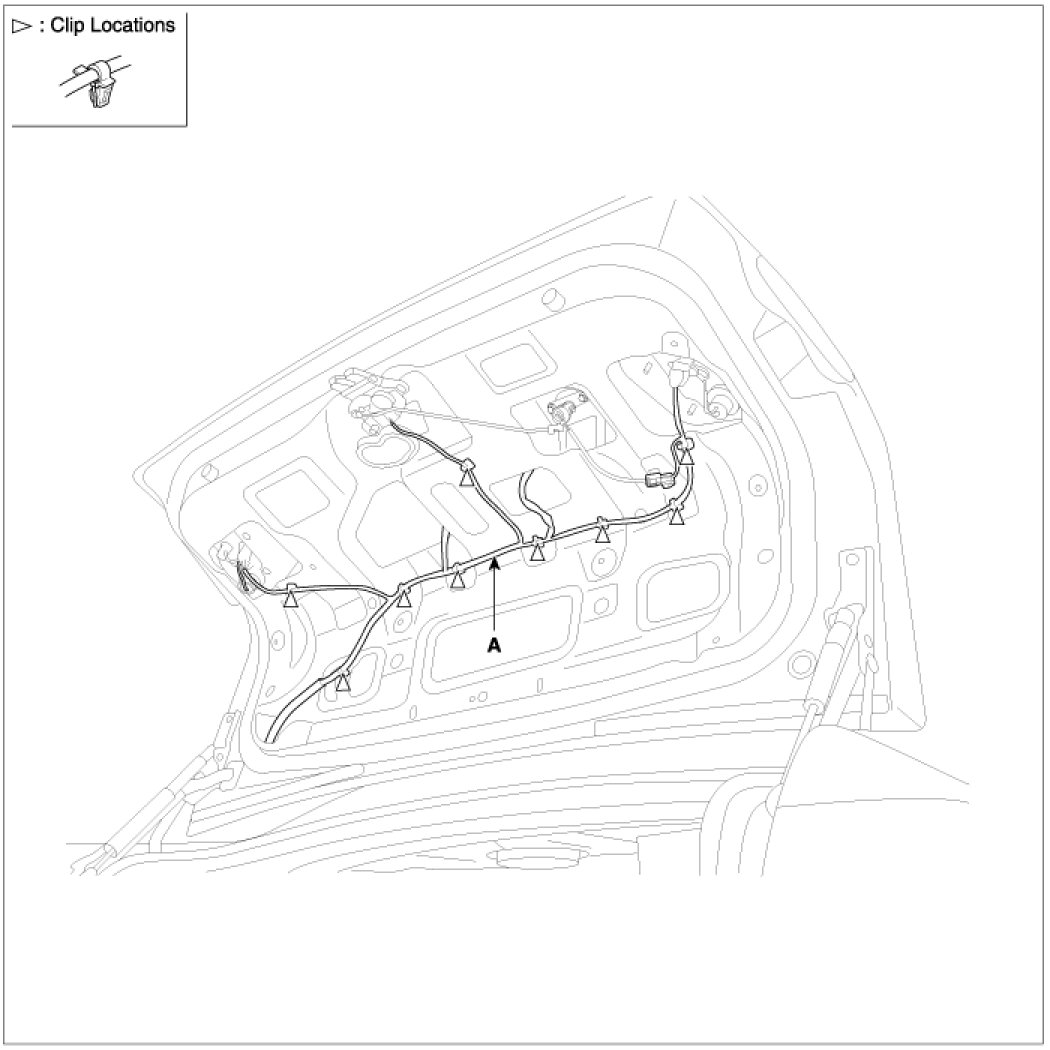

3. Remove the wiring harness (A).




4. Remove the latch assembly.
5. Remove the key holder.

NOTE:
- When removing and installing the trunk lid, an assistant is necessary.
- Take care not to damaged the trunk lid and body.

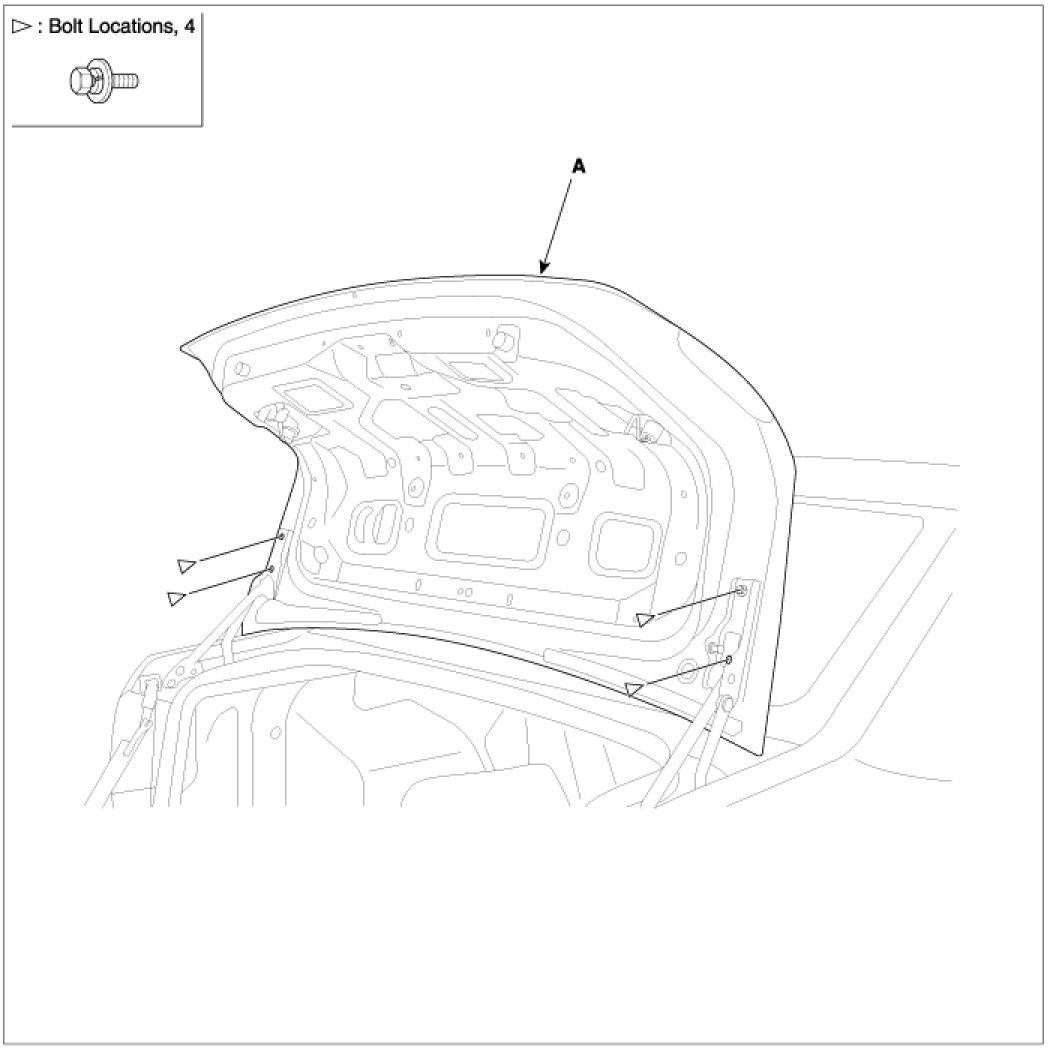

6. After loosening the mounting bolt, then remove the trunk lid assembly (A).
7. Installation is the reverse of removal.

NOTE:
- Make sure the trunk lid opens properly and locks securely.
- Adjust the trunk lid alignment.
