Auxiliary Input / Output Jack: Service and Repair

Removal

1. Remove the center console(A).




2. Disconnect the jack assembly connector from the center console.

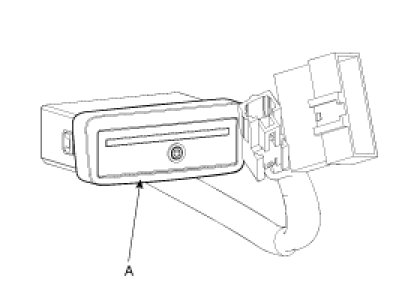

3. Remove the AUX jack(A) from the center console.






Installation

1. Install the AUX jack.
2. Connect the AUX jack connector.
3. Install the center console.
