Monitor DTC Status

P0760 Shift Control Solenoid Valve \'C\'(2nd Brake Solenoid)

Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "2nd SOL. VALVE" parameter on the scantool.
4. Shift gear position.




























Fig 1) P,N

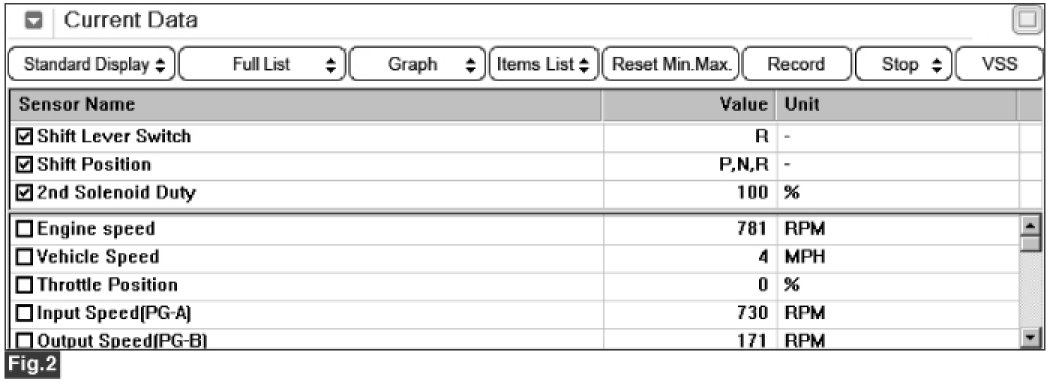

Fig 2) "R"
Fig 3) "D 1st" gear

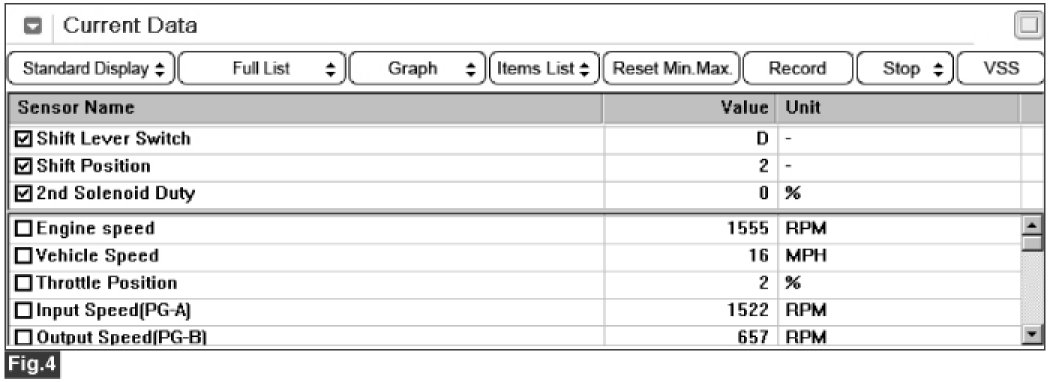

Fig 4) "2nd" gear
Fig 5) "3rd" gear

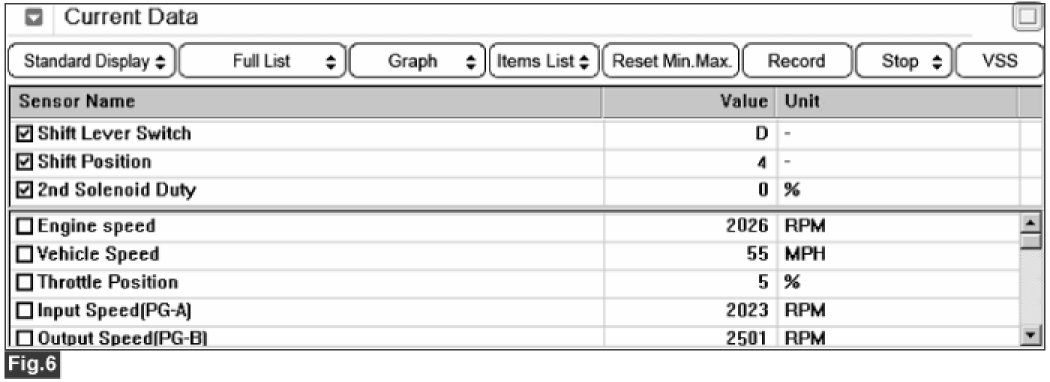

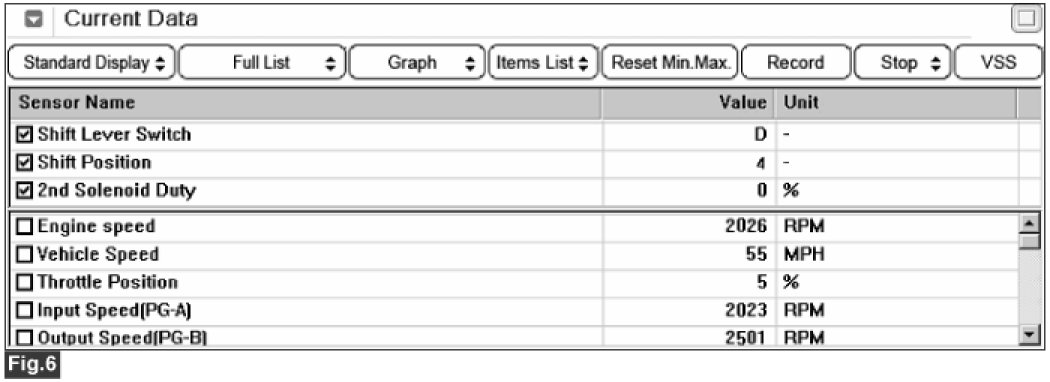

Fig 6) "4th" gear
Fig 7) "5th" gear
5. Does "2nd SOLENOID DUTY " follow the referance data?
