Monitor DTC Status

P0742 Torque Converter Clutch Circuit Stuck On

Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Select "D RANGE" and drive vehicle
4. Monitor the "TORQUE CONVERTER (DAMPER) CLUTCH" parameter on the scantool.

Specification :TCC SLIP<160 RPM (In condition that TCC SOL. DUTY > 80%)

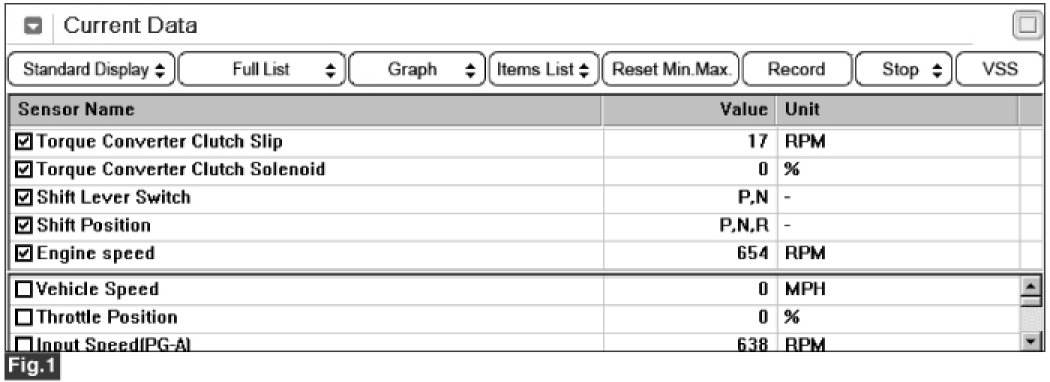

Fig 1) P,N

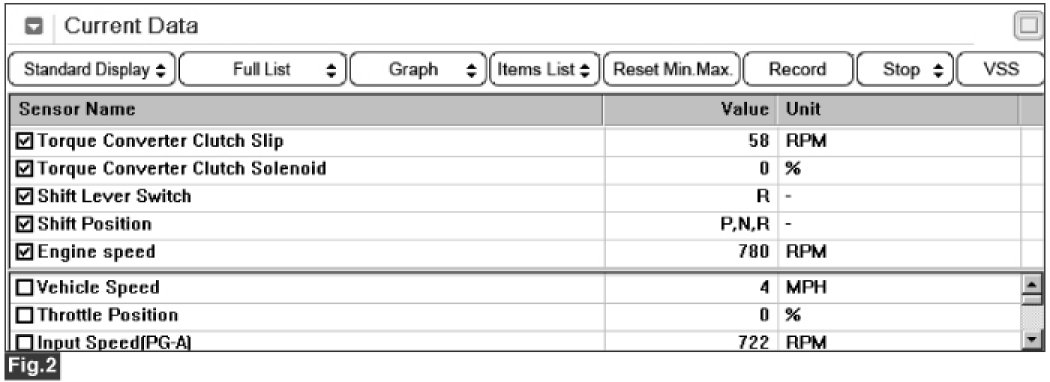

Fig 2) "R"

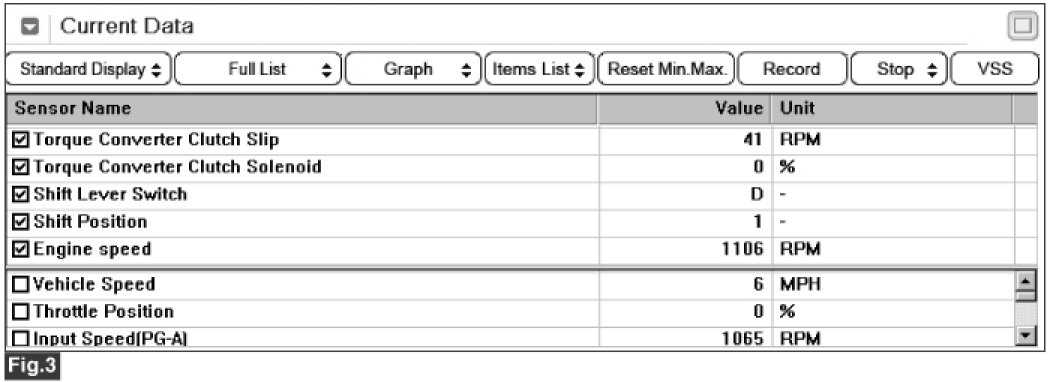

Fig 3) "D 1st" gear

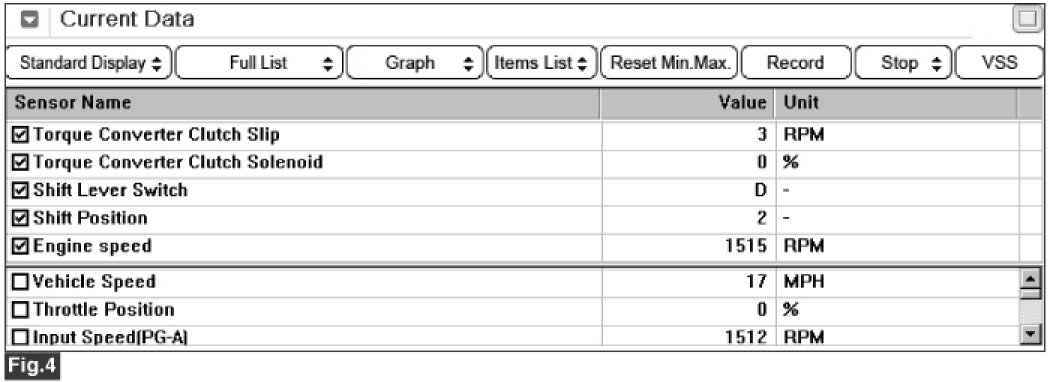

Fig 4) "2nd" gear
Fig 5) "3rd" gear

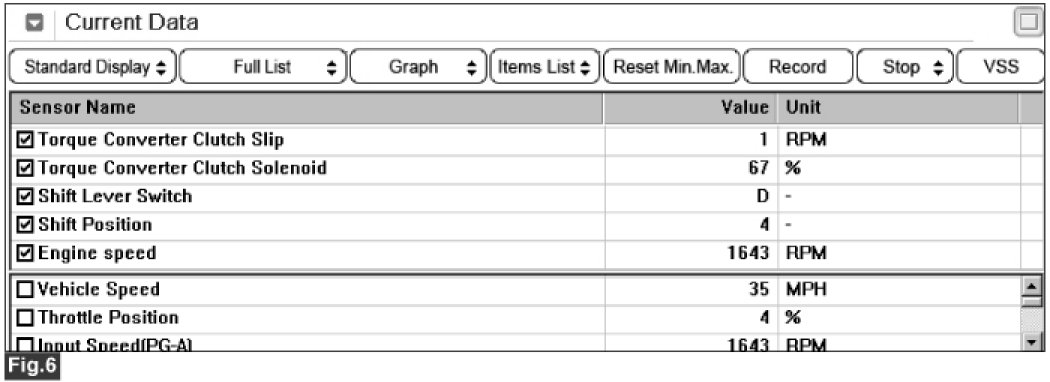

Fig 6) "4th" gear

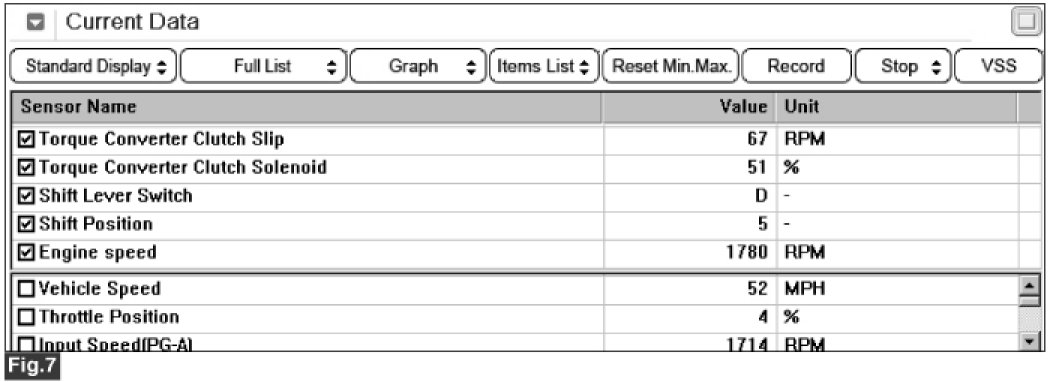

Fig 7) "5th" gear
5. Is TCC SLIP" within specifications?
