W/Harness Inspection

P0733 Gear 3 Incorrect Ratio

Inspection/Repair - W/Harness Inspection

Signal Circuit Inspection

1. Connect Scantool
2. Engine "ON".

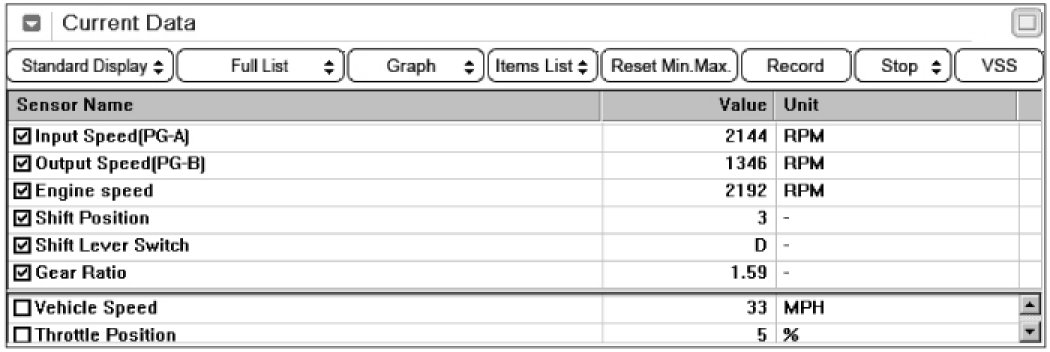

3. Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the scantool
4. Accelerate the Engine speed until about 2000 rpm in the 3rd gear

Specification :INPUT SPEED - (OUTPUT SPEED • GEAR RATIO) ≤ 200 RPM

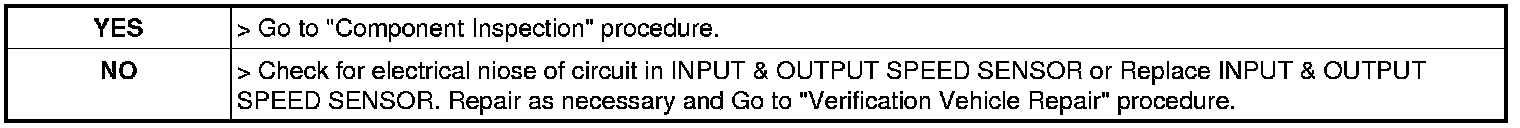

5. Does "INPUT & OUTPUT SPEED SENSOR" within specifications?
