Monitor DTC Status

P0708 Transmission Range Sensor Circuit High Input

Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Ignition "ON" & Engine "OFF".
3. Monitor the "TRANSAXLE RANGE SWITCH" parameter on the scantool
4. Move selector lever from "P" range to "D" range.

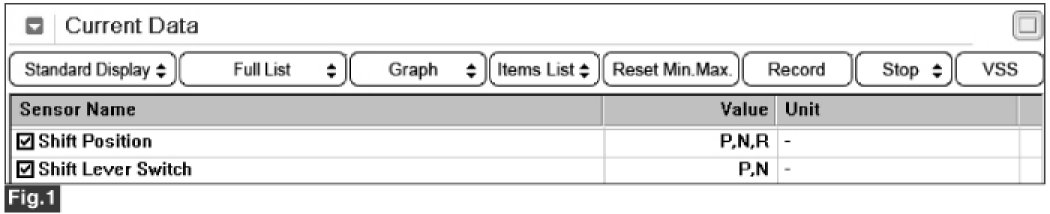

Fig 1) "P, N" RANGE

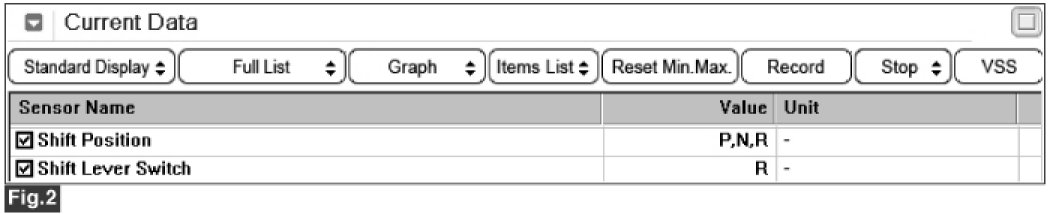

Fig 2) "R " RANGE

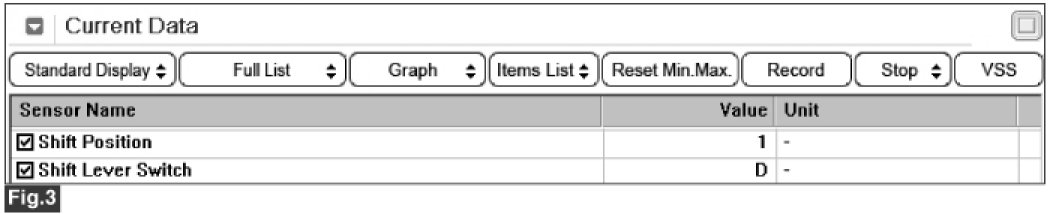

Fig 3) "D " RANGE

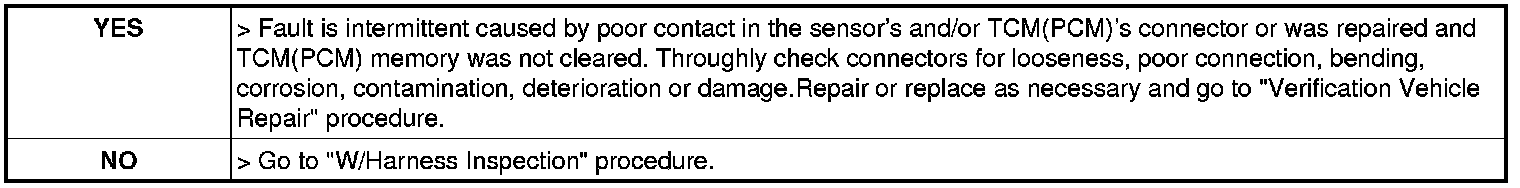

5. Does "TRANSAXLE RANGE SWITCH" follow the referance data?
