Component Inspection





P0444 Evaporative Emission System-Purge Control Valve Circuit Open

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF"
2. Disconnect PCSV connector
3. Measure resistance between power terminal and signal terminal of PCSV connector (Component side).

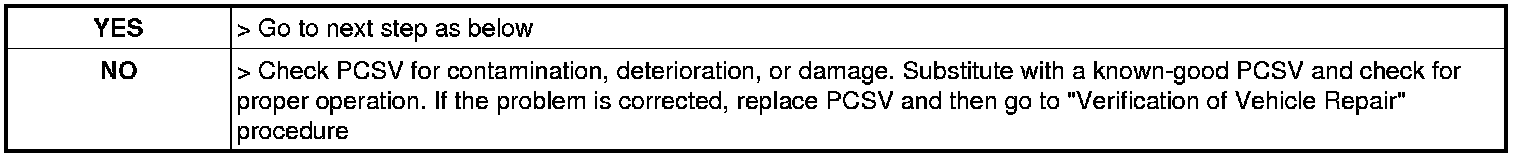

4. Is resistance within the specification?
