Component Inspection





P0117 Engine Coolant Temperature Circuit Low Input

Inspection/Repair - Component Inspection

Component Inspection

1. Measure the resistance between signal terminal and ground terminal of ECTS connector. (Component side)

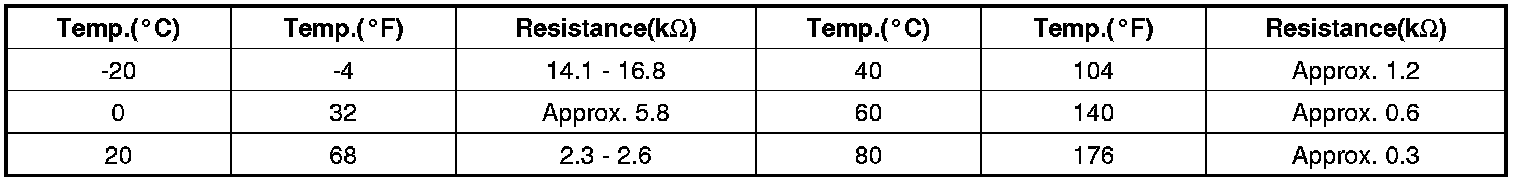

Specification










2. Is resistance within the specification?
