Home >> Kia >> 2010 >> Optima L4-2.4L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0037 >> Component Inspection

Component Inspection





P0037 HO2S Heater Control Circuit Low (Bank 1 / Sensor 2)

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF"
2. Measure resistance between power terminal and control terminal of the sensor connector (Component side)
Specification

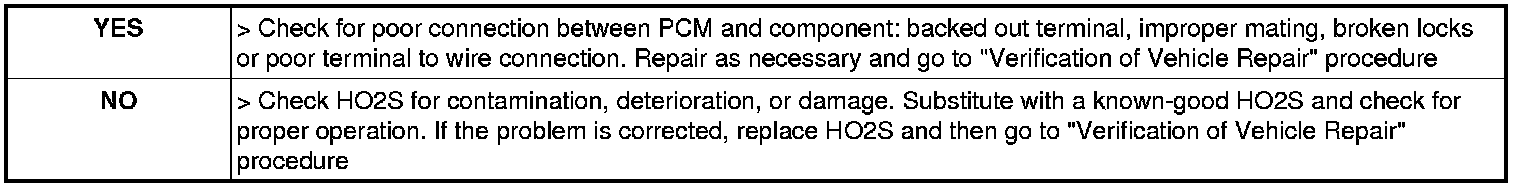

3. Is resistance within the specification?
