Monitor DTC Status

C1283 Yaw Rate & Lateral G Sensor-Signal

Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & Engine "ON".
3. Monitor the "Lateral G Sensor, Yaw Rate Sensor" parameter on the Scantool.

Specification :Lateral G Sensor : approx. ± 0.0 G, YAW Rate Sensor :approx. ± 0.0 deg/s

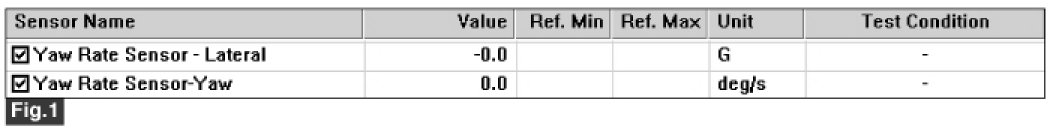

Fig.1) Test Condition : Ignition "ON" & Engine "OFF".

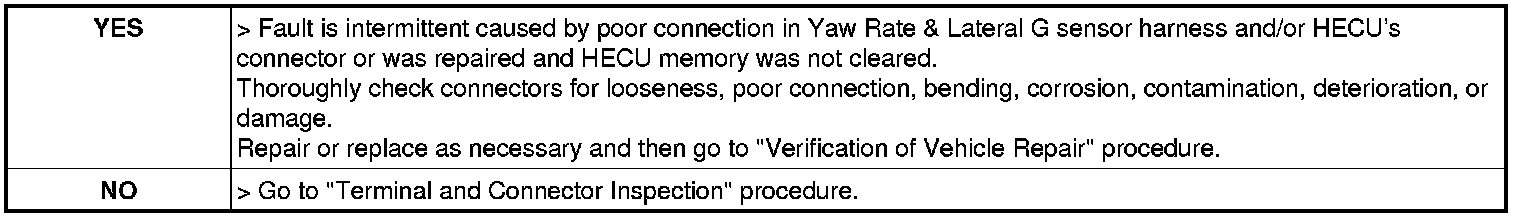

4. Is parameter displayed within specifications?
