W/Harness Inspection

B2504 Warning Lamp Short or Short to Battery

Inspection/Repair - W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check shorting connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Warning lamp Circuit Inspection

1. Ignition "OFF".
2. Remove the Instrument cluster from crash pad assembly.
3. Ignition "ON" & Engine "OFF".
4. Measure voltage between terminal "5" of the Instrument cluster harness connector and chassis ground.

Specification :Batt Voltage

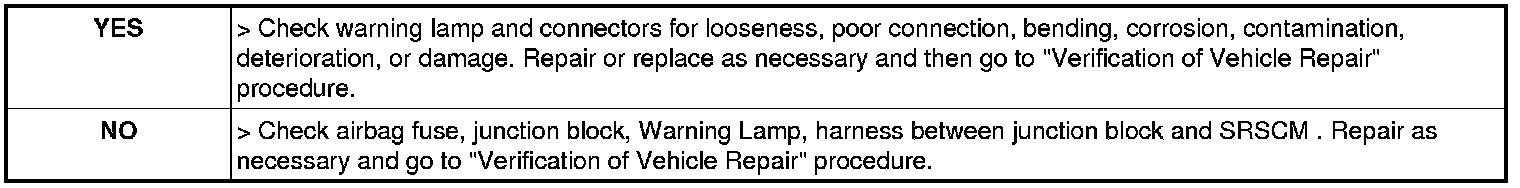

5. Is the measured voltage within specifications?
