Component Inspection

B1449 OC (Occupant Classification)-Passenger Communication Error

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "ON" & Engine "OFF" and Using a scan tool, clear the DTC.
2. Ignition "OFF".
3. Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
4. Disconnect Passenger OC connector.
5. Substitute the OC Passenger Sensor Mat and check for proper operation.

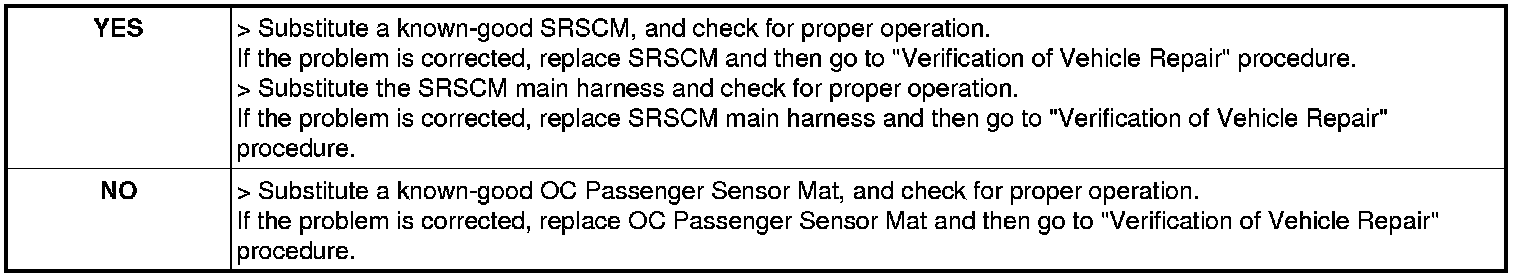

6. Is DTC present problem?
