Component Inspection

B1419 SIS (Side Impact Sensor) Rear-Passenger Defect

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "ON" & Engine "OFF" and Using a scan tool, clear the DTC.
2. Ignition "OFF".
3. Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
4. Disconnect RPSIS connector.
5. Substitute the RPSIS and check for proper operation.

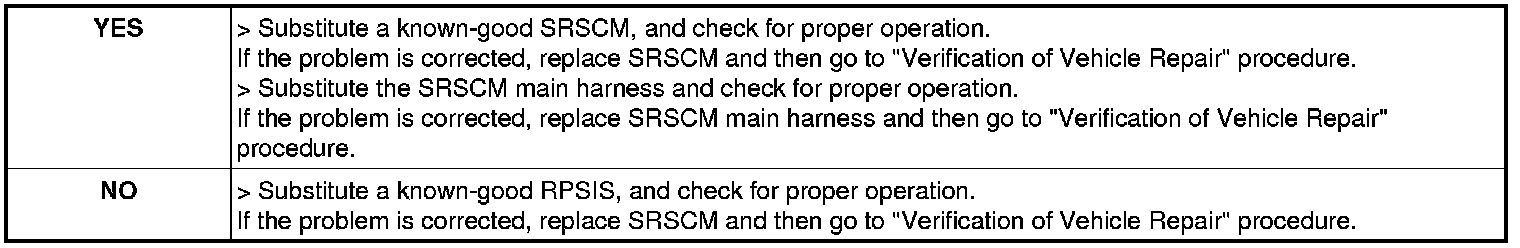

6. Is DTC present problem?
